SPI LED CONTROLLER
Compact Pixel LED Controller for Standalone Installations
Control up to 1,024 RGB or 768 RGBW pixels from a single SPI output. Create and store up to 255 pixel LED effects on an SD card and trigger them using DMX512 or onboard buttons — completely standalone, with no computer required.
Simple Standalone Pixel Control
Create your pixel LED effects in LED Strip Studio, export them to the included SD card, and let the controller handle playback independently. Store up to 255 effects and trigger them instantly from the onboard buttons or a DMX512 lighting console.
With 5–24V DC operation and a compact DIN-rail design, the SPI LED Controller integrates easily into permanent installations, event systems, signage, architectural lighting, and other space-conscious applications.
- SPI LED Controller
- DIN Rail Clip
- Micro SD Card
- SD Card Reader
- Terminal Block Plugs
- Screws
- Quick Start Guide
SPI LED CONTROLLER
One controller.
Standalone simplicity.
Choose a single unit or a 3-pack bundle and save €50.
Compare LED STRIP STUDIO Controllers
Swipe left to see all controllers →
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Device | LED ETHERNET CONTROLLER 3 | SPI MATRIX | SPI LED CONTROLLER | REACTIVO 2 | POWERED SPI LED 2 |
| LED Outputs | 4 | 4 | 1 | 1 | 1 |
| Max. LEDs per Output | RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
| Max. LEDs per Device | RGB: 1024 – 4096 RGBW: 768 – 3072 |
RGB: 1024 – 4096 RGBW: 768 – 3072 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
| Art-Net™ Universe | 6 – 24 Universes | 6 – 24 Universes | – | 6 Universes | 6 Universes |
| Software License | Lifetime | 1-Year | Lifetime | 1-Year | Lifetime / 1-Year |
| Required Power | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 86 – 264 VAC (built-in PSU) |
| Pass-Thru Current | 20A | 20A | 10A | 7A | 5A |
| Ethernet Ports | 2 | 2 | – | 1 | 1 |
| Wi-Fi | – | – | – | ✓ | ✓ |
| DMX IN Connector | XLR 3-pin (optional 5-pin) | XLR 3-pin (optional 5-pin) | RJ-45 | – | XLR 3-pin (optional 5-pin) |
| DMX OUT Connector | XLR 3-pin (optional 5-pin) | XLR 3-pin (optional 5-pin) | RJ-45 | – | XLR 3-pin (optional 5-pin) |
| LED Output Connector | XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
SH04-5-GY | 15EDGK-3.5-04P-14-00Z(H) TME: 15EDGK-3.5/4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
| Power Connector | XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
SH04-5-GY | DC Jack | IEC C14 |
| SD Card | ✓ | ✓ | ✓ | ✓ | ✓ |
| Real-time Art-Net™ Software Control | ✓ | ✓ | – | ✓ | ✓ |
| Real-time LSS Software Control | ✓ | ✓ | – | ✓ | ✓ |
| DMX Synchronization | ✓ | ✓ | ✓ | – | ✓ |
| Ethernet Synchronization | ✓ | ✓ | – | ✓ | ✓ |
| DIP Switch | ✓ | ✓ | – | – | – |
| SPI LAMP Support | ✓ | ✓ | – | – | – |
SPI LED CONTROLLER

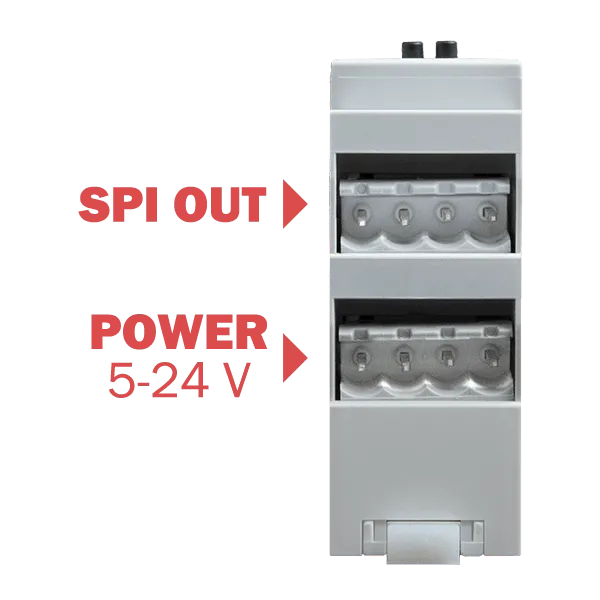

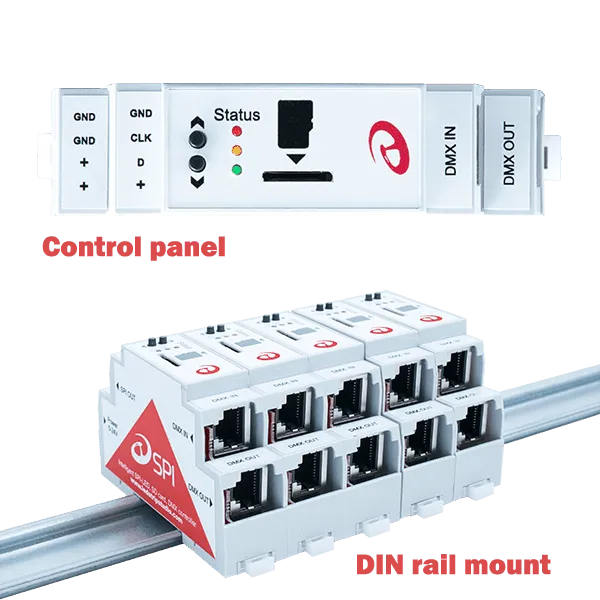

Controller Overview
Built for ease of use, the controller offers essential connectivity, expansion capabilities, and clear hardware interfaces for efficient system integration.
SPI LED CONTROLLER

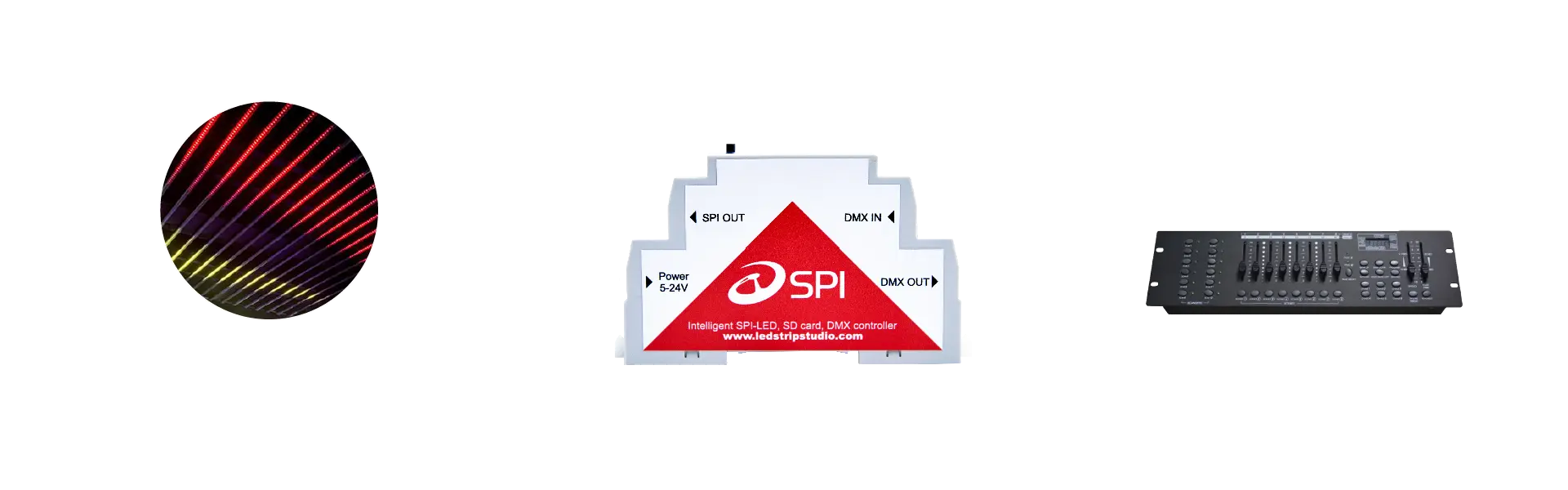

System Connection
A tightly integrated system where software and hardware work as one—delivering precise, real-time control from creation to output.
SPI LED CONTROLLER

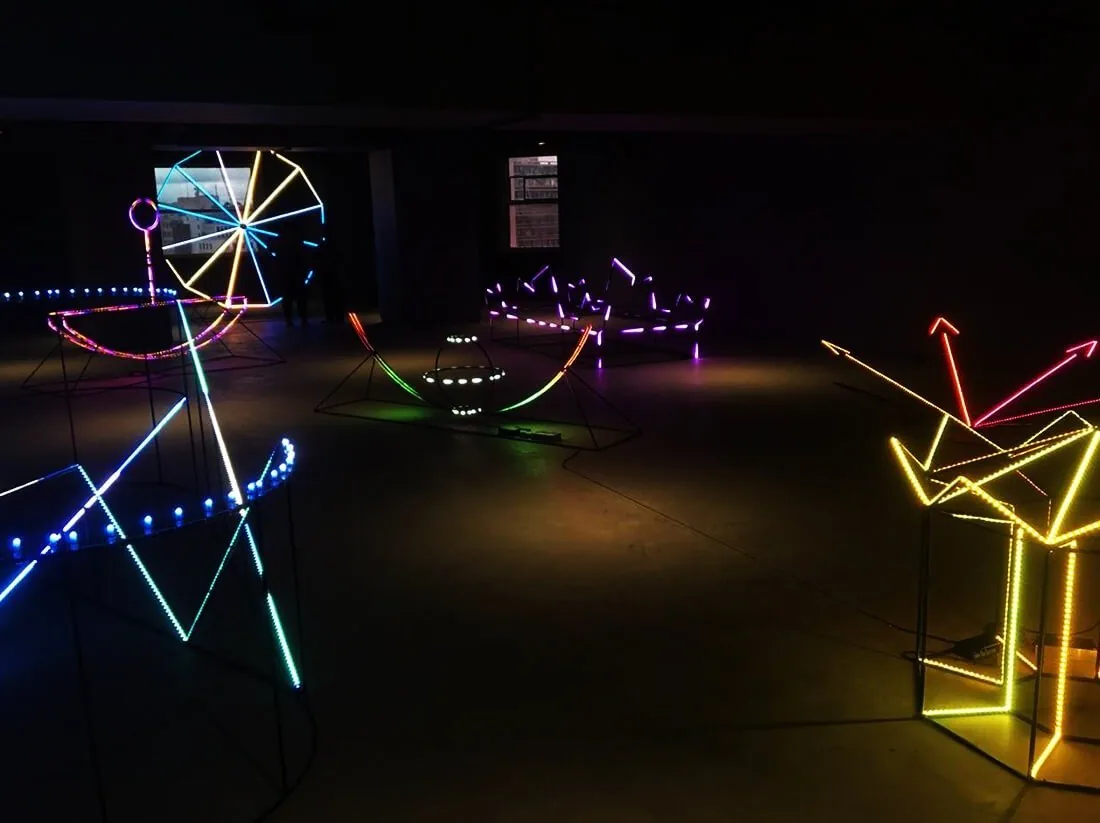

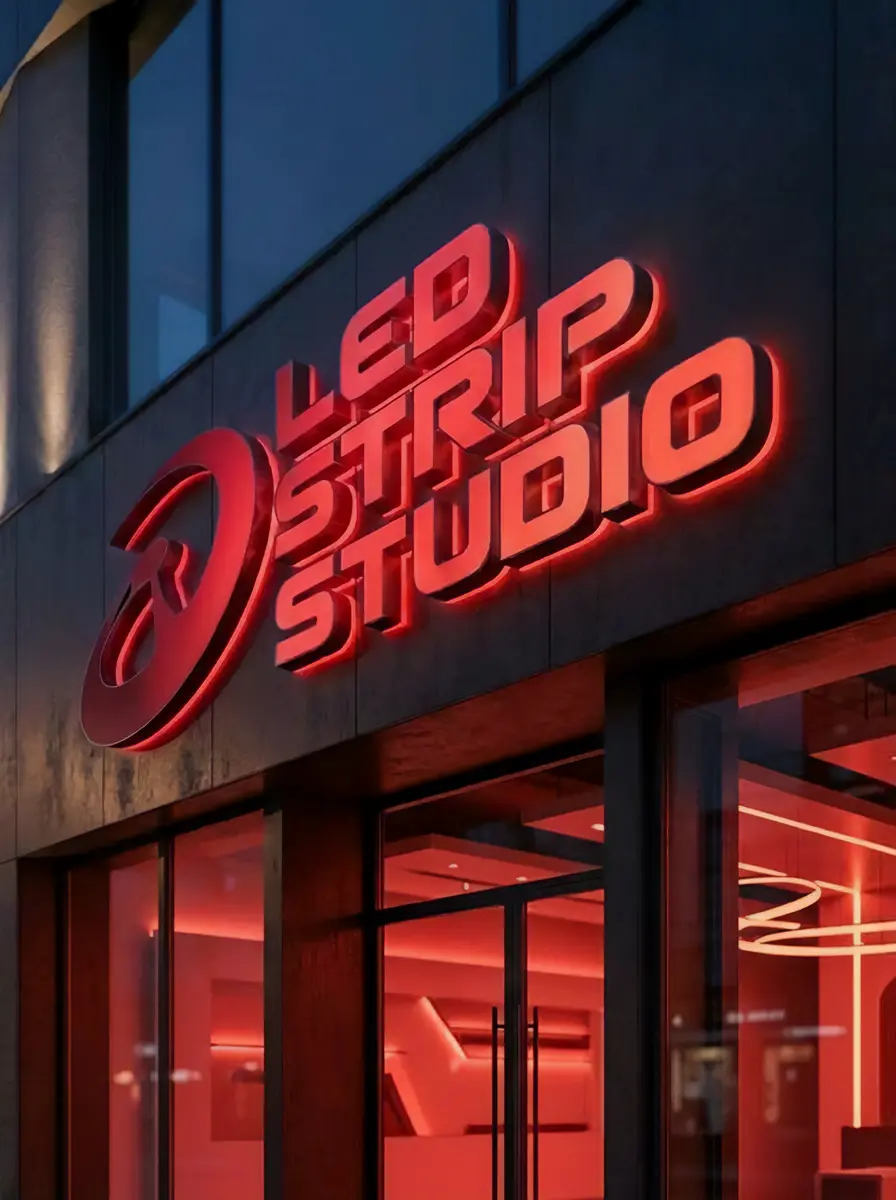

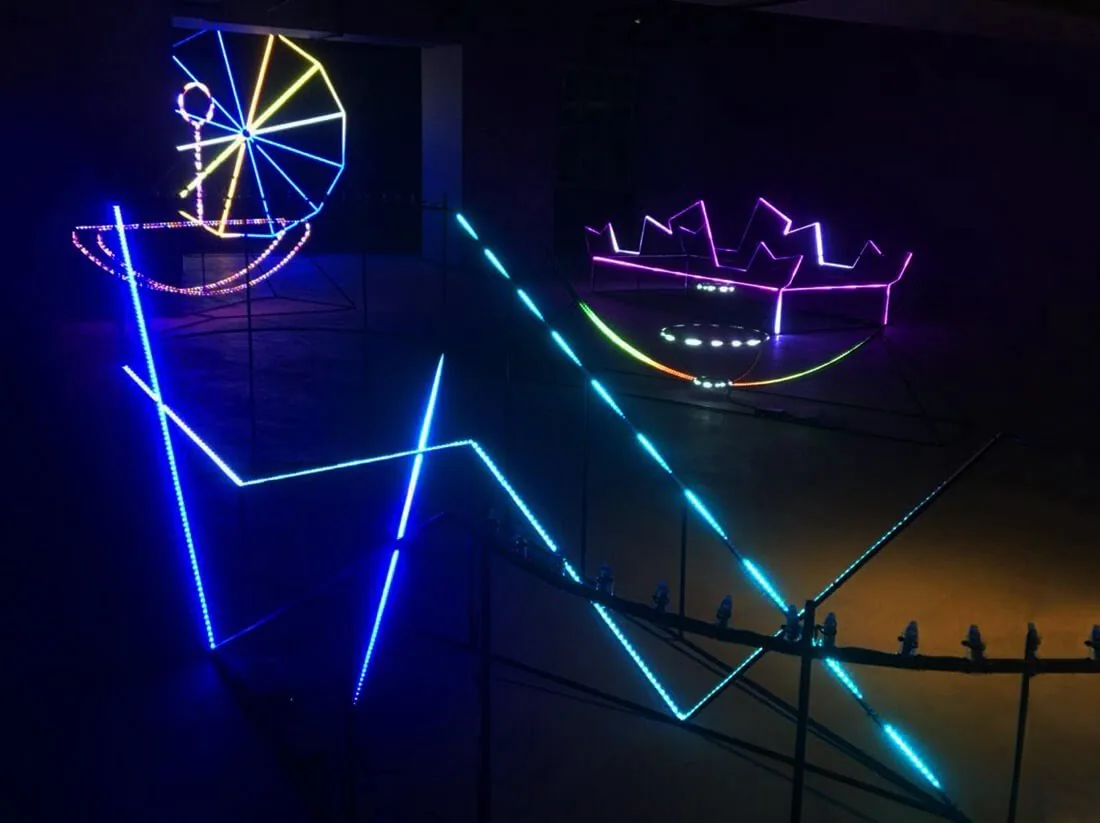

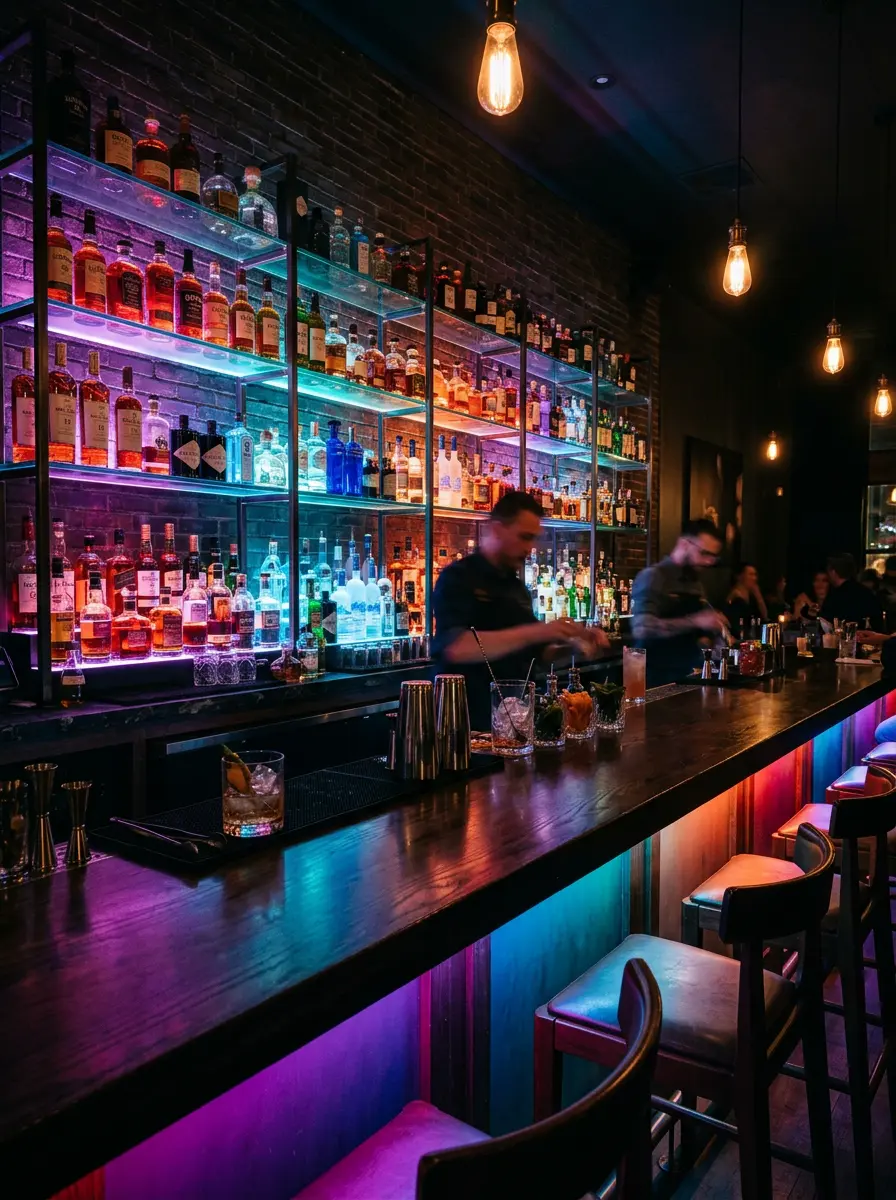

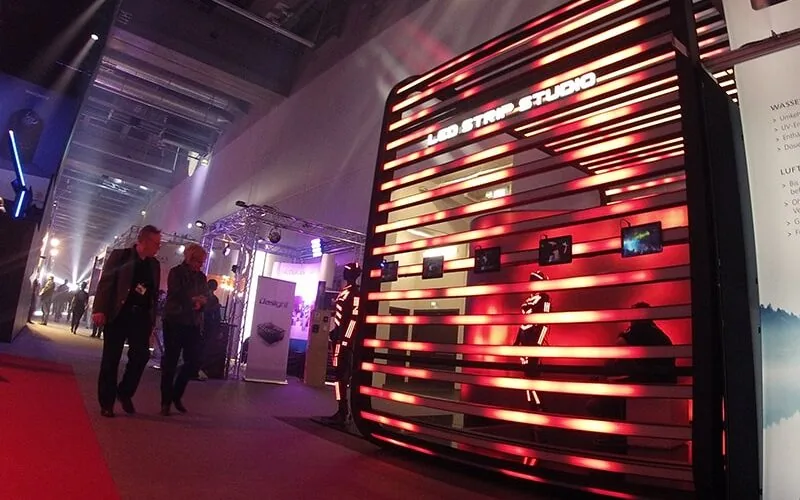

Use Cases
Designed for a wide range of professional LED installations—from live events and touring productions to permanent setups.
SPI LED CONTROLLER
Key Features
Simple Standalone Pixel Control
Create your pixel LED effects in LED Strip Studio, export them to the SD card, and let the controller handle playback independently. Store up to 255 effects and switch between animations directly using the two onboard buttons, or trigger them remotely via DMX512.
Read More →Instant Animation Switching
Two onboard buttons let you switch between stored animations without a computer, app, or external controller.
Read More →Up to 1024 RGB / 768 RGBW Pixels
Control up to 1024 RGB or 768 RGBW pixels with precision from a single SPI output.
Read More →

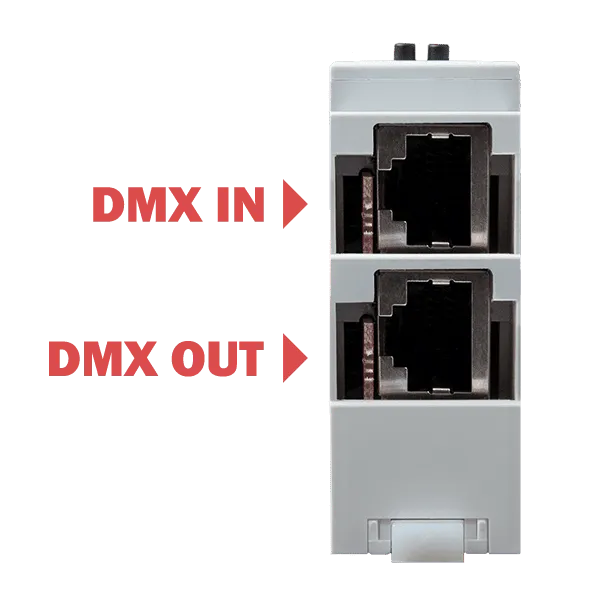

DMX512 Support
Includes separate DMX input and output for integration with traditional setups.
Read More →Standalone SD Card Playback
Play animations straight from the SD card on a schedule, with no computer connected on site.
Read More →Multi-Device Synchronization
Link several controllers over the DMX line so their SD card animations start together and stay aligned across the whole installation.
Read More →Wide LED Chip Support
TM1809, TM1803, SK6812, WS2811/12, APA102/104, LPD8806, SM16716/26, and more.
Read More →SPI LED CONTROLLER

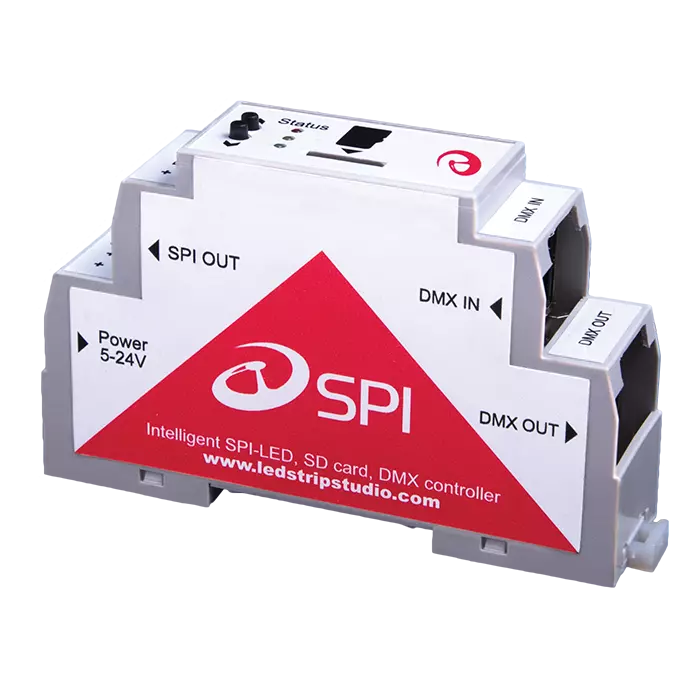

Digital LED Controller for Standalone Use
A closer look at the compact SPI LED Controller.
SPI LED CONTROLLER
FAQ
The controller runs on 5–24V DC, so it works directly with most common LED power supplies without an extra converter. More in SPI LED Controller Installation Examples.
A single unit drives up to 1024 RGB or 768 RGBW pixels over its SPI output. Full answer in Pixels and Universes per Controller.
Yes. Store up to 255 effects on a Micro SD card and trigger them using the onboard hardware buttons or an external DMX signal — no PC required. More in SD Card Mode: DMX-Triggered Animations.
Yes, the controller includes separate DMX in and out connectors, so it can sit inline with a standard DMX512 lighting rig. More in DMX512 In and Out on LSS Controllers.
Effects are created and exported using LED Strip Studio 4, then copied to the SD card for standalone playback.

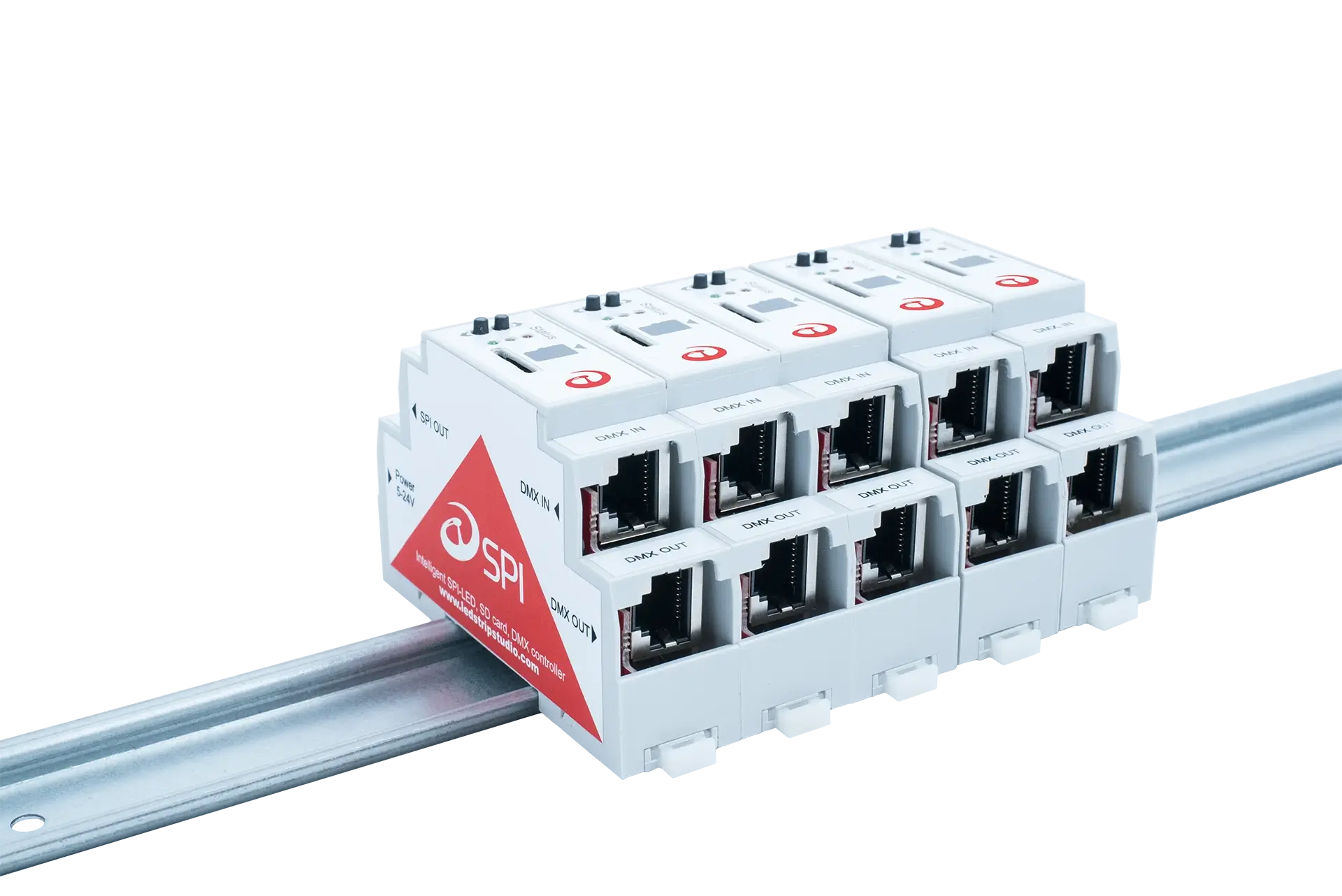

Yes. Units mount side by side on a standard DIN rail, letting you scale up to larger installations while keeping wiring clean.
