SPI LED Controller

Introduction to the SPI LED hardware

Introduction and hardware description

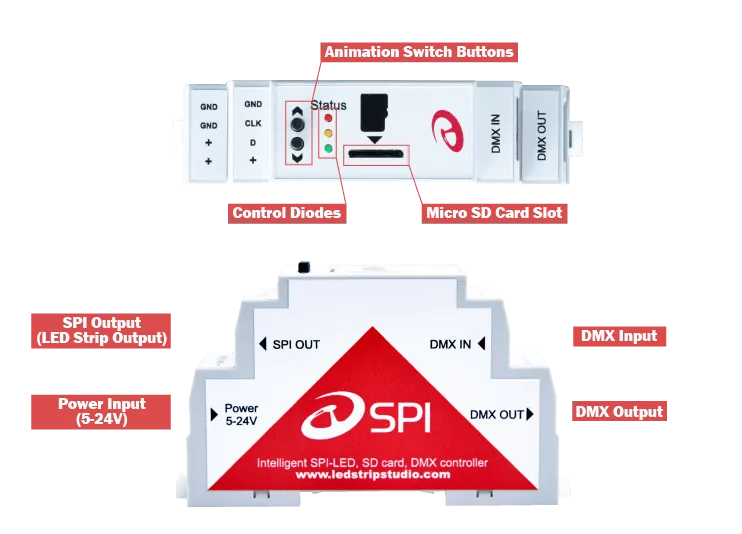

Hardware board contains connectors, buttons and some control diodes.

DMX In / DMX Out

Input/output for DMX signal. SPI LED Controller contains standard RJ45 connectors where only some lines are used for Data +, Data – and Ground (GND).

RJ-45 connector lines usage for
1 D+
2 D-
7 GND
8 GND

Micro SD card slot

Slot for standard micro SD Card. All animations for digital LED strips or pixels can be saved on a “FAT32 formatted card with size up to 32GB”.

Mode/Status indicators

Three control diodes displaying the status of the device.

Frame sending – diode flashes when picture is being sent to SPI out.

DMX signal detected – diode flashes when DMX signal is detected.

Power on – diode turns on if power is connected.

Animation switch buttons – Store multiple animations on the SD Card. Using the two up/down buttons, you can select which animation to play.

SPI Out

Digital output for LED strips/LED pixels. SPI OUT (SH04-5-GY) connector scheme included.

Power In

Power input for a power source, in the range from 5 to 24V DC. SH04-5-GY connector scheme provided.
