SPI MATRIX
Art-Net™ Pixel LED Controller for Endless Possibilities
Control up to 4,096 RGB or 3,072 RGBW pixels with four independent SPI outputs. SPI Matrix combines professional Art-Net™ control, standalone playback, web configuration, and long-distance SPI signal transmission in one compact controller.
SPI Matrix doesn't lock you into a specific software ecosystem. It works with Art-Net™ and sACN, making it compatible with the lighting consoles and software you already use. From grandMA and Resolume to MadMapper and TouchDesigner, simply send your lighting data and SPI Matrix takes care of the pixel output.

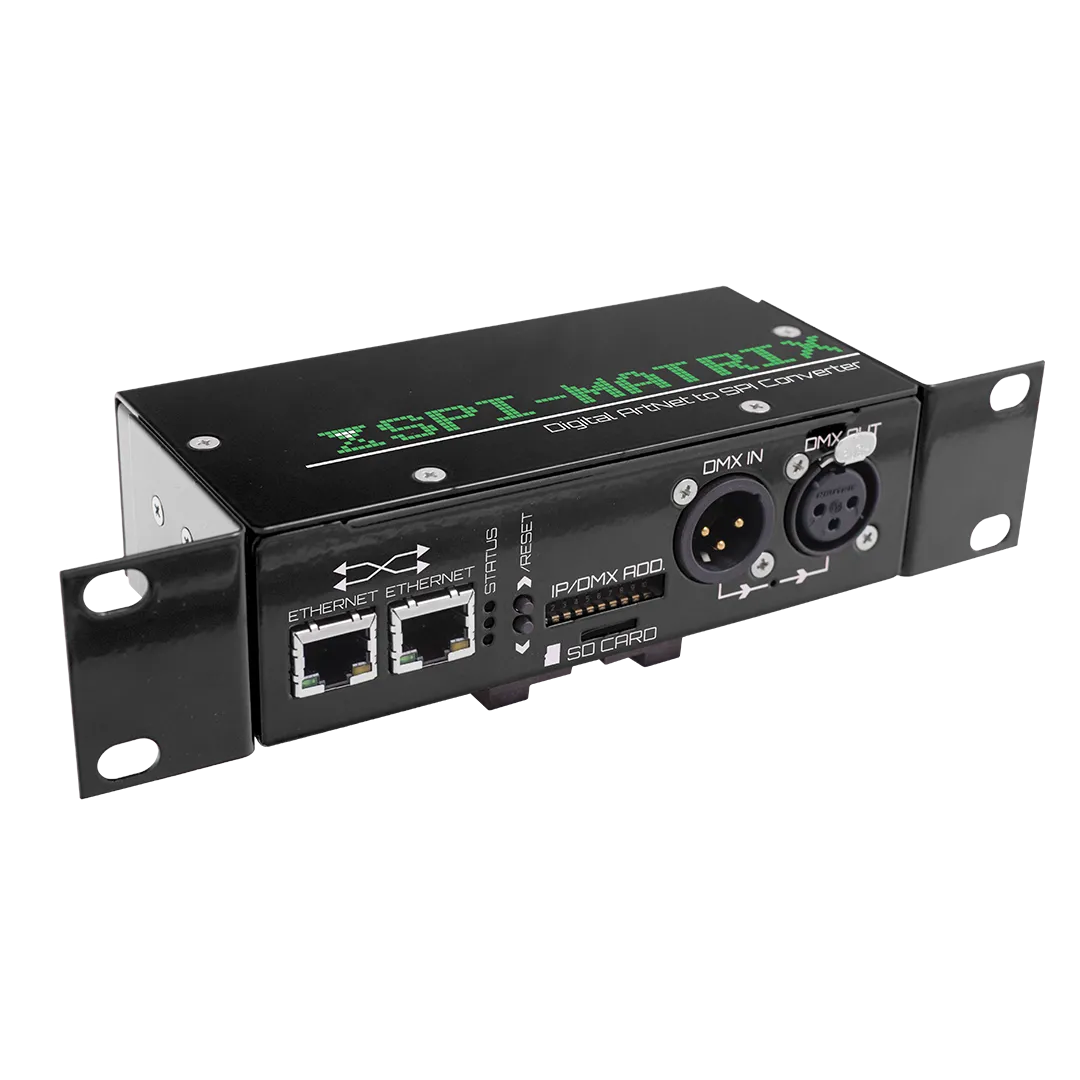

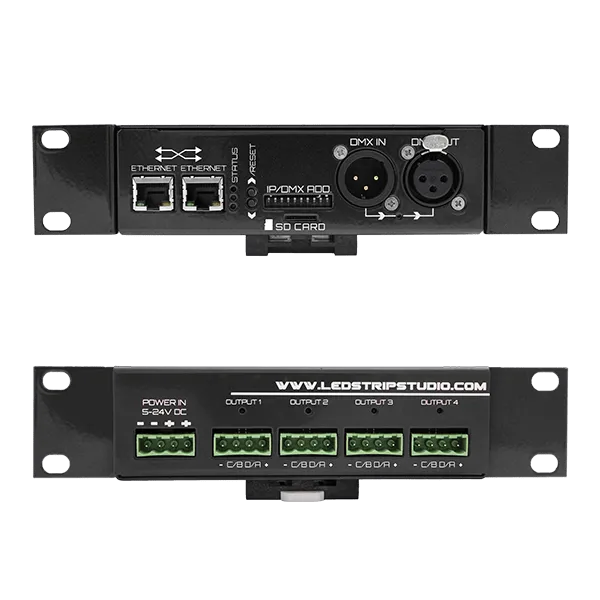

SPI Matrix
Art-Net Pixel LED Controller
Designed to fit seamlessly into professional lighting environments, SPI Matrix converts Art-Net™ or sACN data into pixel LED output across four independent SPI ports. Control up to 4,096 RGB or 3,072 RGBW pixels from virtually any compatible lighting console or software — including grandMA, Resolume, MadMapper, TouchDesigner, and other Art-Net™ / sACN sources.
With standalone SD-card playback, web configuration, and flexible installation options, SPI Matrix can be used as part of an existing lighting system or as a powerful standalone pixel controller.

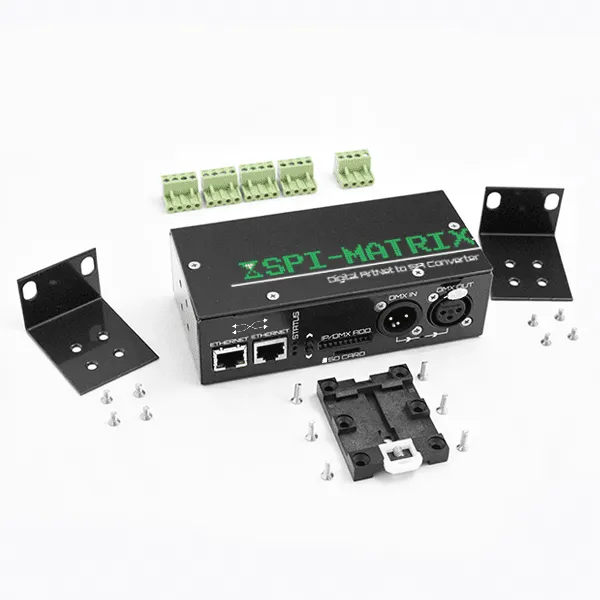

- SPI MATRIX Controller
- Quickstart Guide
- 64GB Micro SD Card
- SD Card Reader
- "L" Mount Brackets
- DIN Rail Mount
- 5 x Terminal Block Plugs
- Screws
- Super Fancy Ballpoint Pen with Touch Screen Tip
Built-In Protection That Resets Itself
Every SPI output is protected by a self-resetting fuse, helping prevent damage caused by short circuits or overloads. Once the problem is resolved, the output automatically returns to normal operation, reducing downtime and simplifying maintenance.

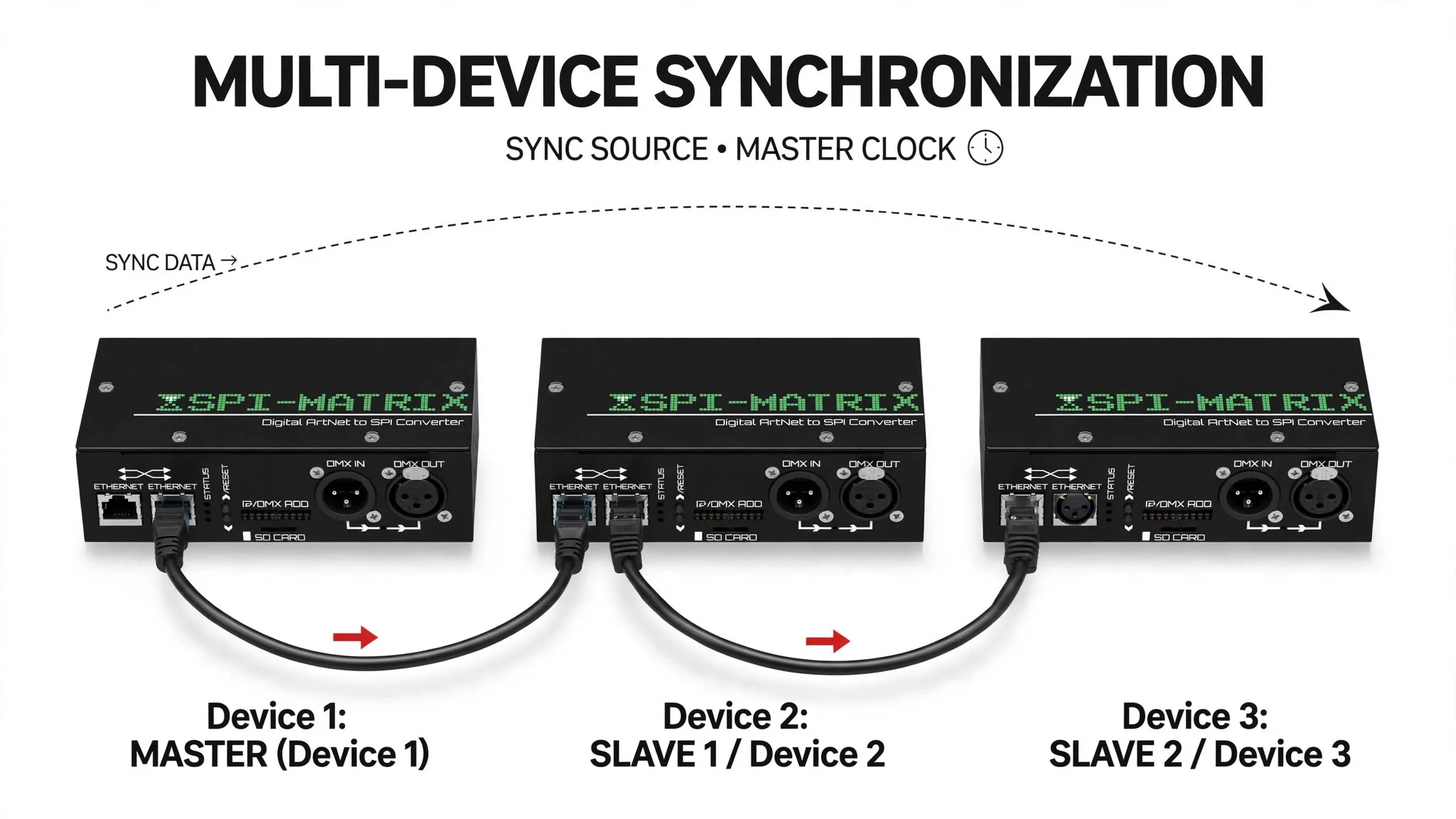

Advanced Multi-Device Synchronization
Synchronize multiple SPI Matrix controllers in stand-alone mode over Ethernet or DMX, keeping playback precisely aligned across the entire installation. This distributed architecture allows large-scale displays with 100,000+ pixel LEDs to run independently — without a computer — in perfect synchronized harmony.
See how multi-device synchronization works across our controllers.
SPI MATRIX
Compatibility
Integrates seamlessly into existing lighting workflows and can be controlled from any ArtNet or sACN-capable software or console.
SPI MATRIX
Use Cases

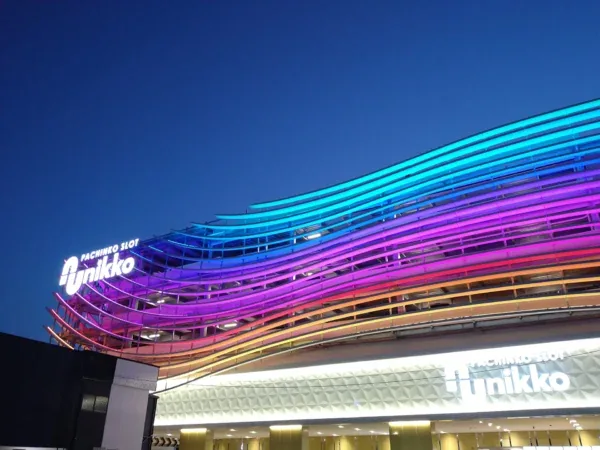

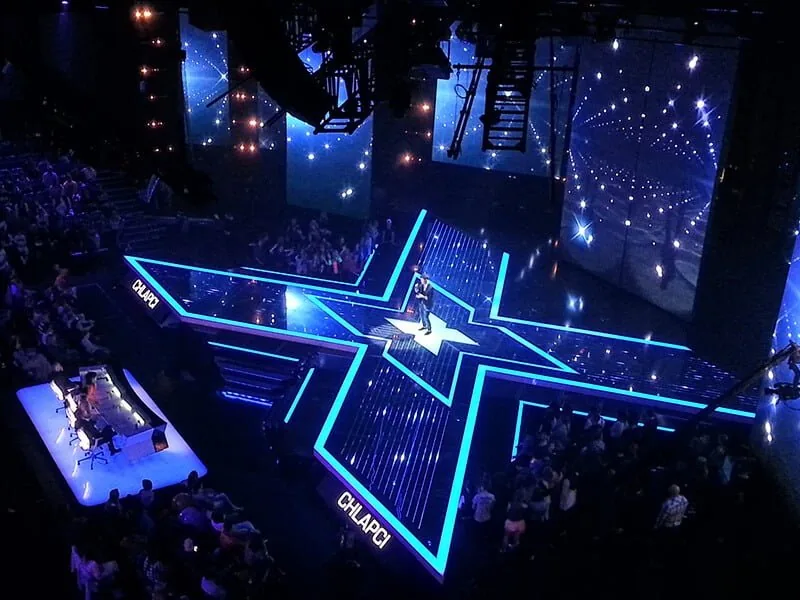

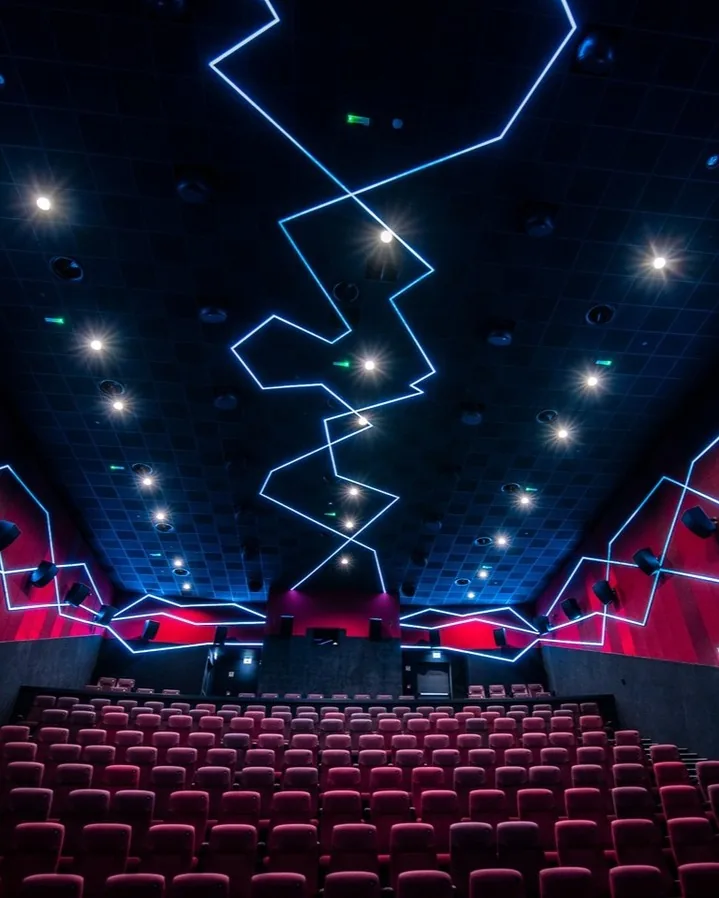

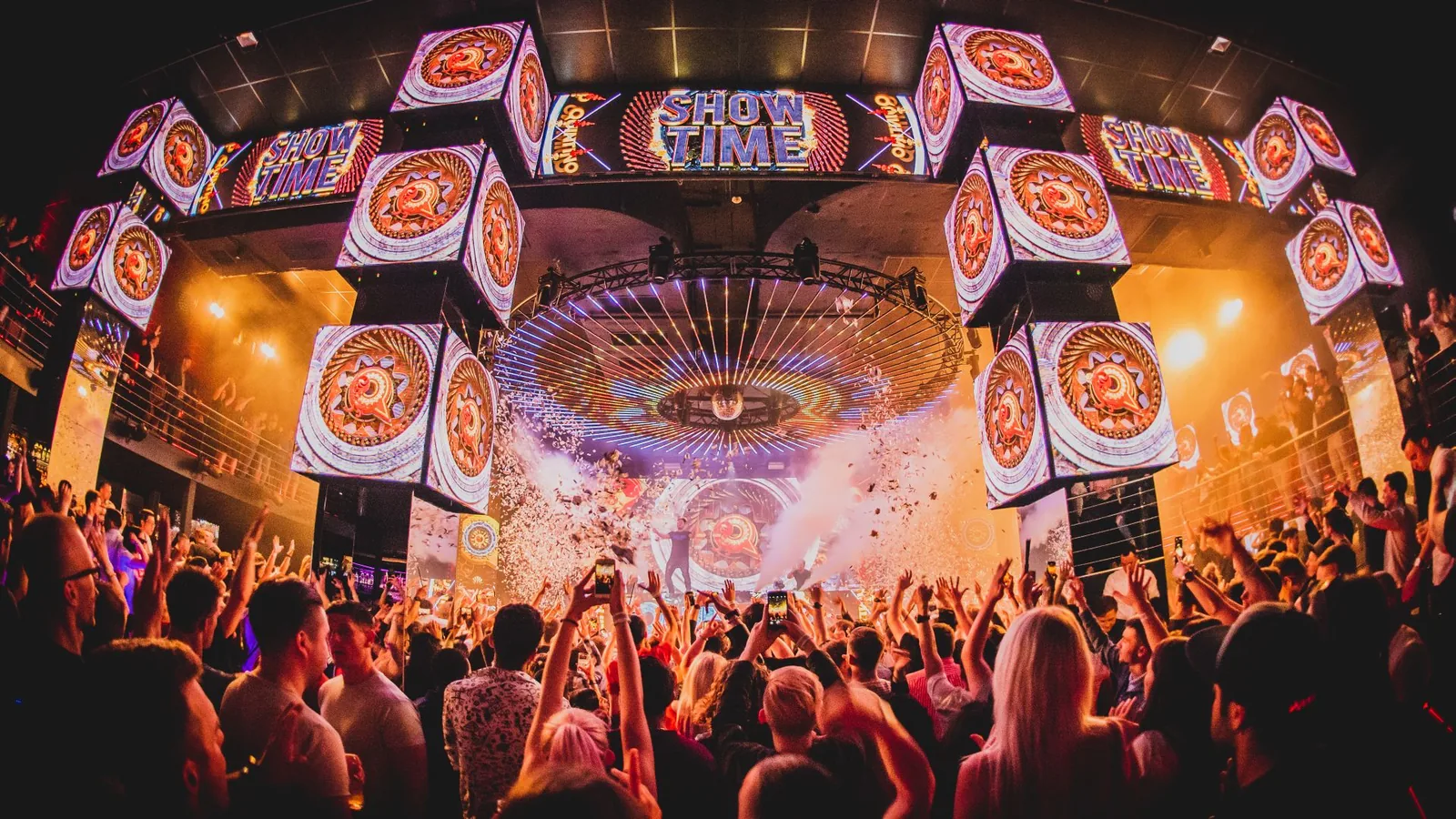

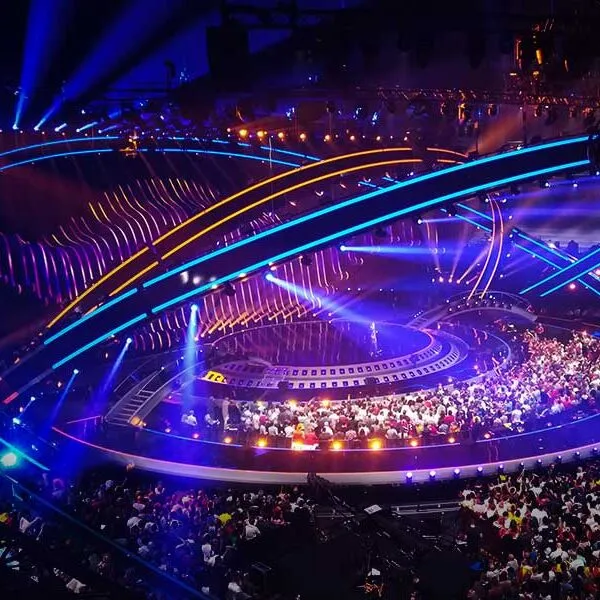

Designed for a wide range of professional LED installations—from live events and touring productions to permanent setups.
SPI MATRIX
Key Features
Art-Net & sACN SPI Decoder
Supports both Art-Net and sACN protocols for seamless integration with any lighting setup.
Read More →Up to 24 Art-Net Universes
Control 4096 RGB / 3072 RGBW pixels with precision across 4 independent SPI outputs.
Read More →Universal Compatibility
Compatible with MADRIX, grandMA, Resolume, MadMapper, and other Art-Net software.
Read More →Mobile & Web Configuration
Set up and monitor the device easily via iPhone, Android, or any web browser.
Read More →
DMX512 Support
Includes separate DMX input and output for integration with traditional setups.
Read More →Standalone Playback & Sync
Decoder by day, standalone player by night: the SD card keeps the show running without a computer.
Read More →Long-Distance SPI Signal
Built-in Symmetrizer ensures stable signals over 500+ meters of SPI cabling.
Read More →Wide LED Chip Support
TM1809, TM1803, SK6812, WS2811/12, APA102/104, LPD8806, SM16716/26, and more.
Read More →SPI MATRIX
One platform.
Three performance levels.
From compact setups to large-scale installations
Compare LED STRIP STUDIO Controllers
Swipe left to see all controllers →
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|

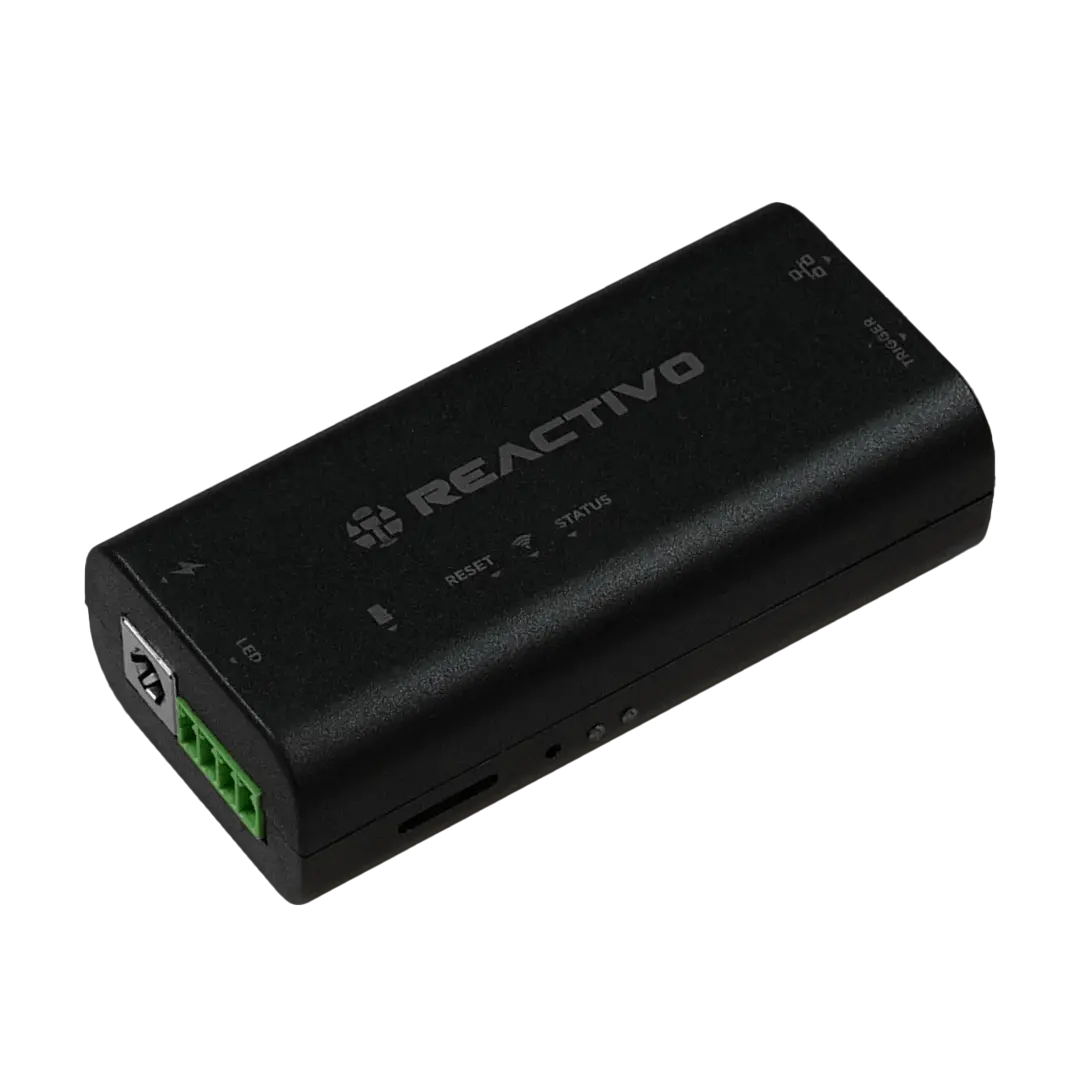

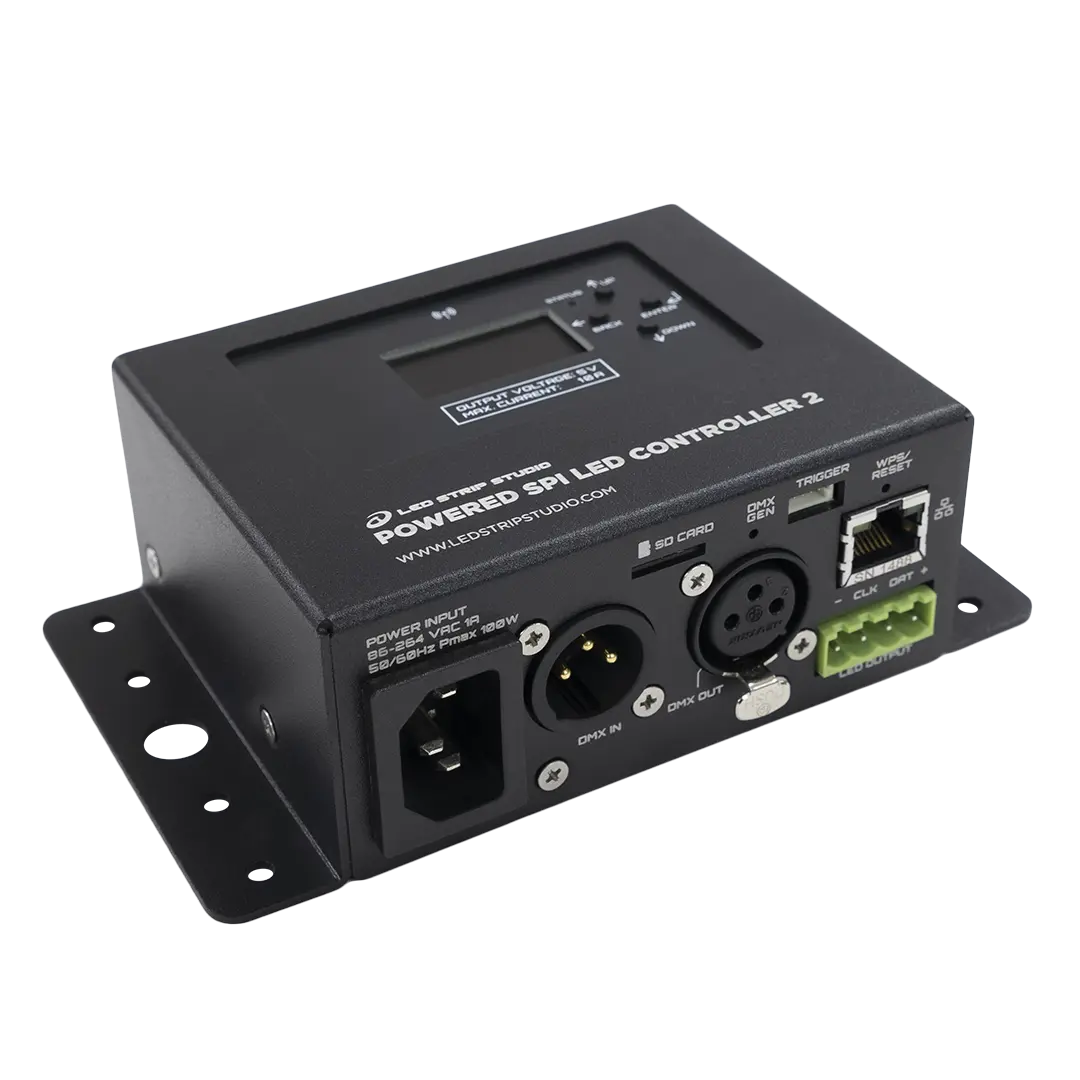

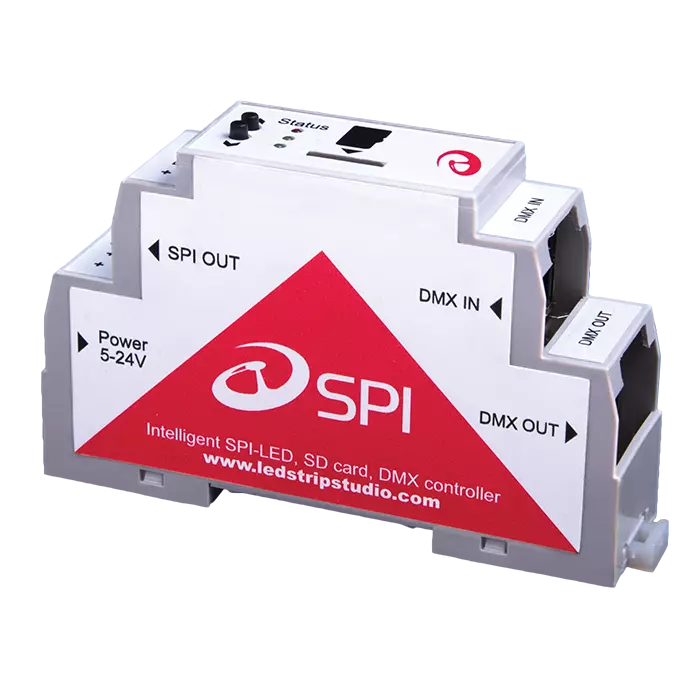

| Device | LED ETHERNET CONTROLLER 3 | SPI MATRIX | SPI LED CONTROLLER | REACTIVO 2 | POWERED SPI LED 2 |
| LED Outputs | 4 | 4 | 1 | 1 | 1 |
| Max. LEDs per Output | RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
| Max. LEDs per Device | RGB: 1024 – 4096 RGBW: 768 – 3072 |
RGB: 1024 – 4096 RGBW: 768 – 3072 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
| Art-Net™ Universe | 6 – 24 Universes | 6 – 24 Universes | – | 6 Universes | 6 Universes |
| Software License | Lifetime | 1-Year | Lifetime | 1-Year | Lifetime / 1-Year |
| Required Power | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 86 – 264 VAC (built-in PSU) |
| Pass-Thru Current | 20A | 20A | 10A | 7A | 5A |
| Ethernet Ports | 2 | 2 | – | 1 | 1 |
| Wi-Fi | – | – | – | ✓ | ✓ |
| DMX IN Connector | XLR 3-pin (optional 5-pin) | XLR 3-pin (optional 5-pin) | RJ-45 | – | XLR 3-pin (optional 5-pin) |
| DMX OUT Connector | XLR 3-pin (optional 5-pin) | XLR 3-pin (optional 5-pin) | RJ-45 | – | XLR 3-pin (optional 5-pin) |
| LED Output Connector | XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
SH04-5-GY | 15EDGK-3.5-04P-14-00Z(H) TME: 15EDGK-3.5/4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
| Power Connector | XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
SH04-5-GY | DC Jack | IEC C14 |
| SD Card | ✓ | ✓ | ✓ | ✓ | ✓ |
| Real-time Art-Net™ Software Control | ✓ | ✓ | – | ✓ | ✓ |
| Real-time LSS Software Control | ✓ | ✓ | – | ✓ | ✓ |
| DMX Synchronization | ✓ | ✓ | ✓ | – | ✓ |
| Ethernet Synchronization | ✓ | ✓ | – | ✓ | ✓ |
| DIP Switch | ✓ | ✓ | – | – | – |
| SPI LAMP Support | ✓ | ✓ | – | – | – |
SPI MATRIX
See SPI Matrix in Action
A closer look at the SPI Matrix Art-Net decoder.
SPI MATRIX
FAQ
Any Art-Net or sACN-capable software or console, including MADRIX, grandMA, Resolume, MadMapper, and ChamSys. More in Universal Art-Net and sACN Compatibility.
Up to 4096 RGB or 3072 RGBW pixels across 4 independent SPI outputs, depending on your tier. More in Precise Pixel Control per SPI Output.
They scale pixel count and Art-Net universes — 1024 / 2048 / 4096 pixels and 6 / 12 / 24 universes respectively. Full comparison and the upgrade path in LITE, STANDARD and PRO explained.
Yes, it includes separate DMX in and out connectors for integration with traditional lighting rigs. More in DMX512 In and Out on LSS Controllers.
Yes. Store effects on the included SD card and play them back standalone, with multi-device sync and scheduling. More in Standalone Playback and Sync from SD.
Set it up and monitor it directly via iPhone, Android, or any web browser — no extra software required for basic setup. More in Mobile & Web Configuration Without a PC.
