LEC3
Complete Pixel LED Control System
LEC3 combines powerful hardware and intuitive software to give you everything you need to create, control, and run professional pixel LED installations.
Control up to 4096 RGB or 3072 RGBW LEDs. Standalone playback, web configuration, and long-distance SPI built-in. Compatible with most intelligent LED pixels — perfect for shows, stages, and installations.
Scroll up to explore

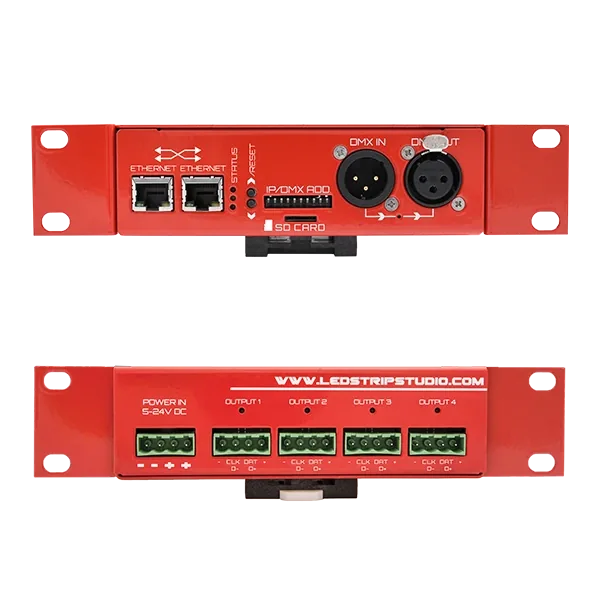

LED Ethernet Controller 3 (LEC3)
Advanced pixel LED controller built around the proprietary LED Strip Studio pixel protocol, with real-time compression that significantly reduces network traffic and enables reliable control of large-scale pixel LED installations. The LEC3 system has been successfully used to control installations with up to 200,000 individual RGB pixels.
It also supports Art-Net/sACN, DMX, and seamless integration with LED Strip Studio software. In stand-alone mode, pixel LED content can be played directly from an SD card, allowing the installation to run without a computer.

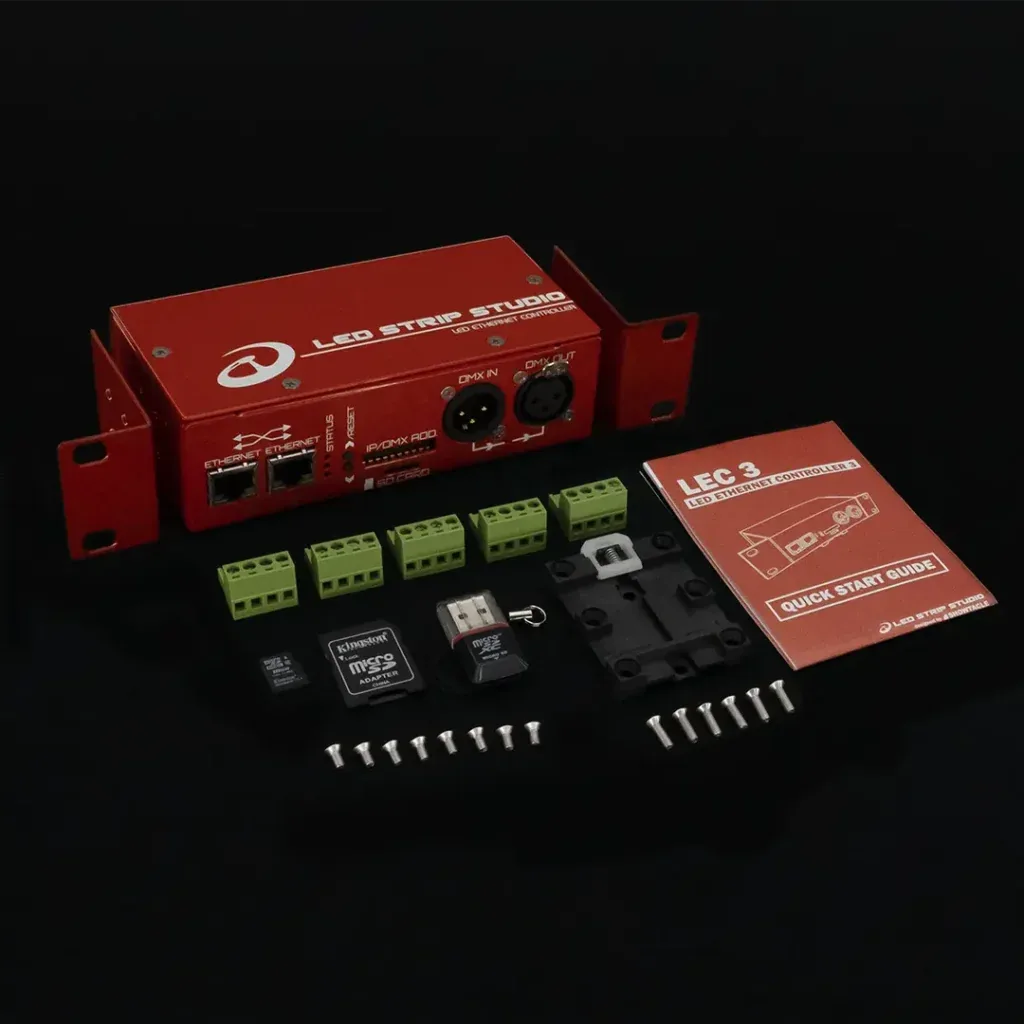

- LEC3 LED Ethernet Controller
- 5x pluggable terminal blocks
- MicroSD card + SD adapter
- USB card reader
- DIN rail mounting bracket
- Mounting screws
- Quick Start Guide

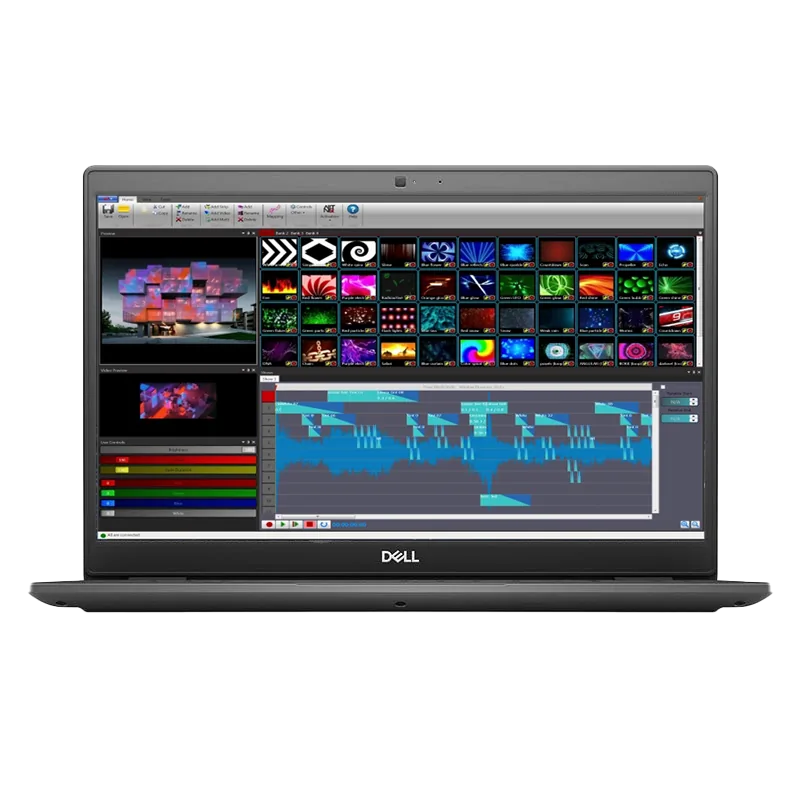

LED Strip Studio Software
Included with LEC3 is a lifetime LED Strip Studio Software license. Built specifically for pixel mapping, LSS4 makes complex LED installations easy — from drawing curved segments that match real layouts to running multi-layer video across massive displays.
LSS4 communicates with LEC3 using the proprietary LED Strip Studio pixel protocol, featuring real-time data compression that significantly reduces network traffic while maintaining reliable control of large pixel installations. This allows LEC3 and LSS4 to work together as a highly optimized system, proven in installations controlling up to 200,000 individual RGB pixels.

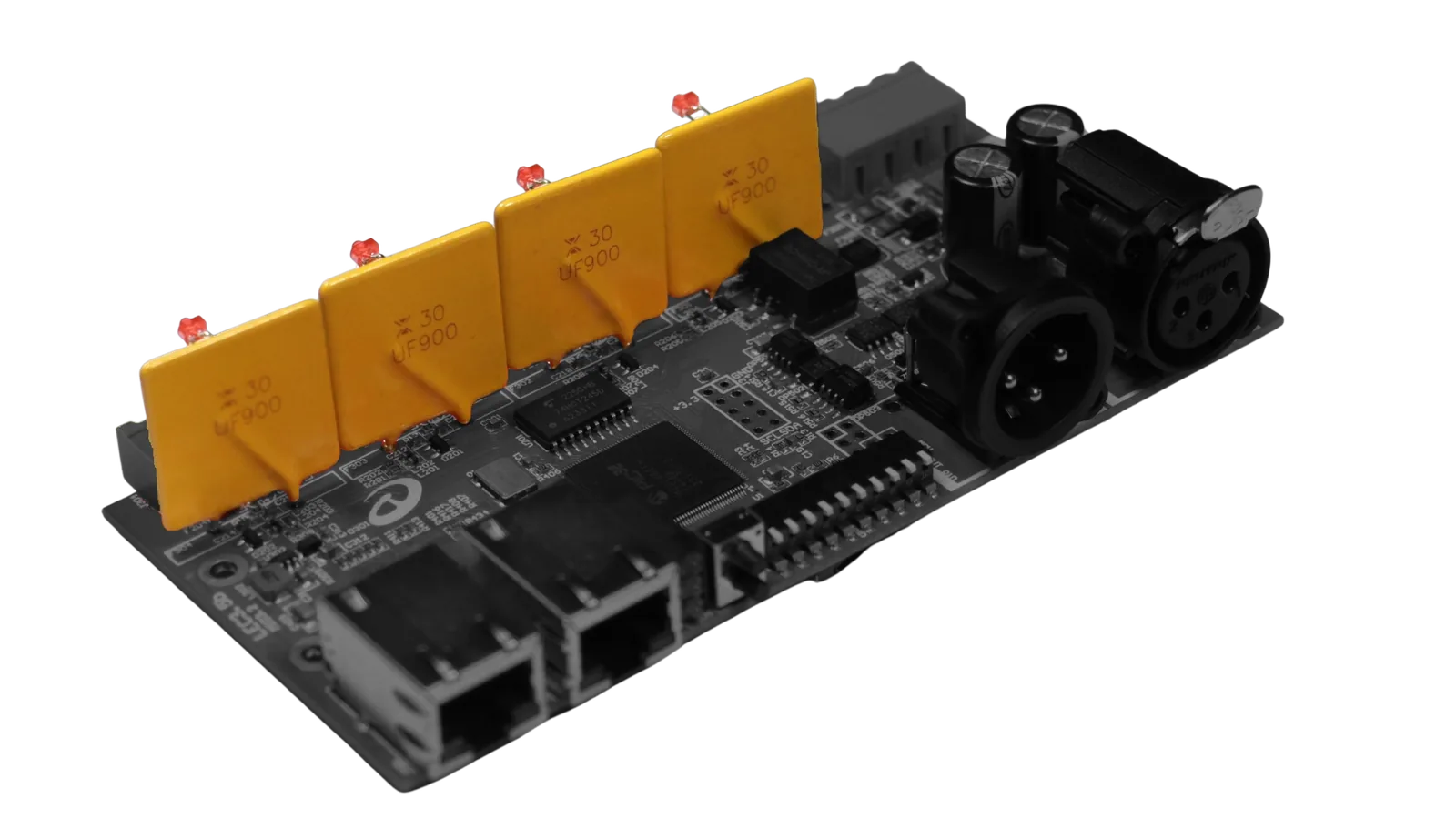

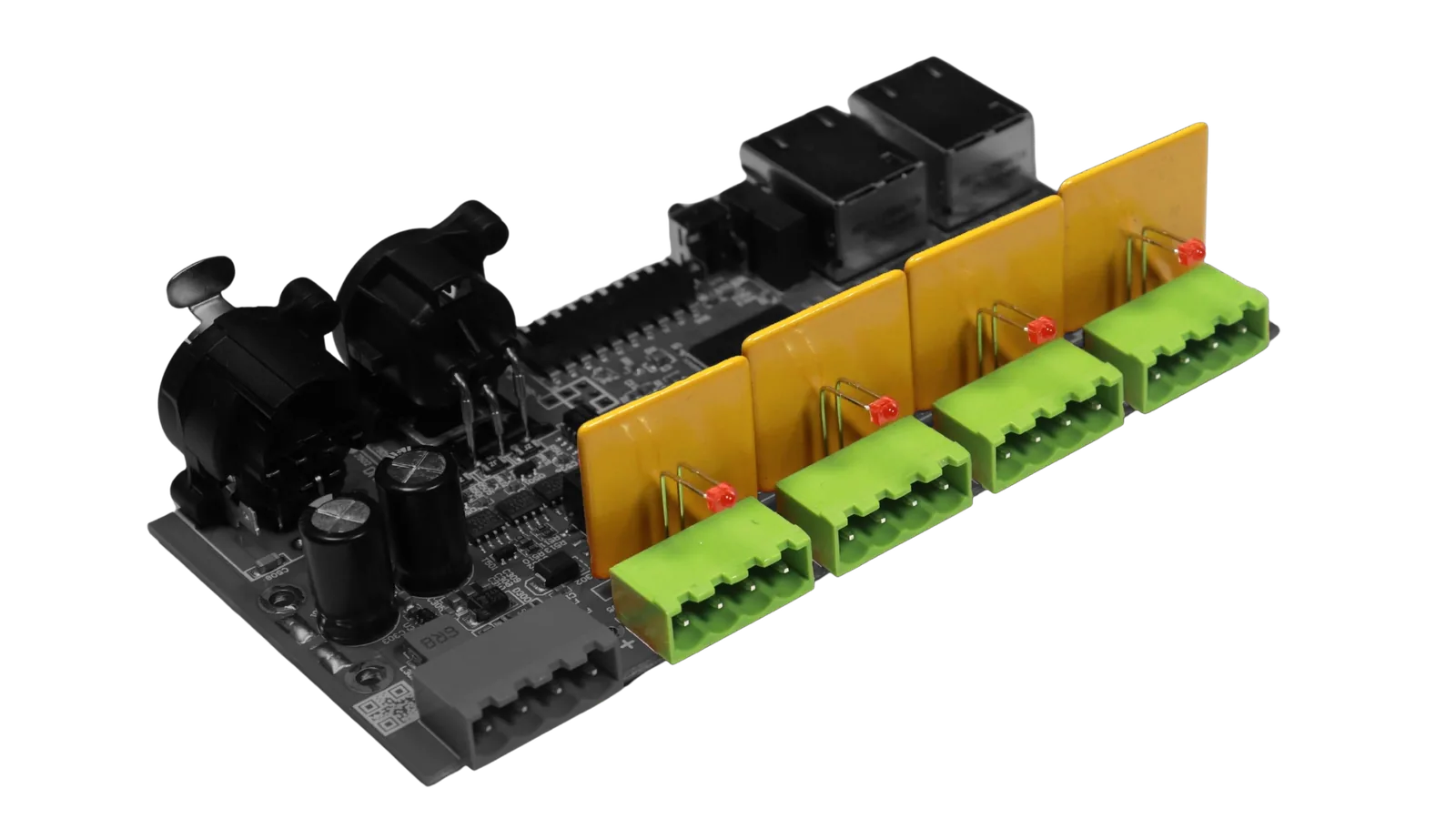

Built-In Protection That Resets Itself
Every SPI output is protected by a self-resetting fuse, helping prevent damage caused by short circuits or overloads. Once the problem is resolved, the output automatically returns to normal operation, reducing downtime and simplifying maintenance.

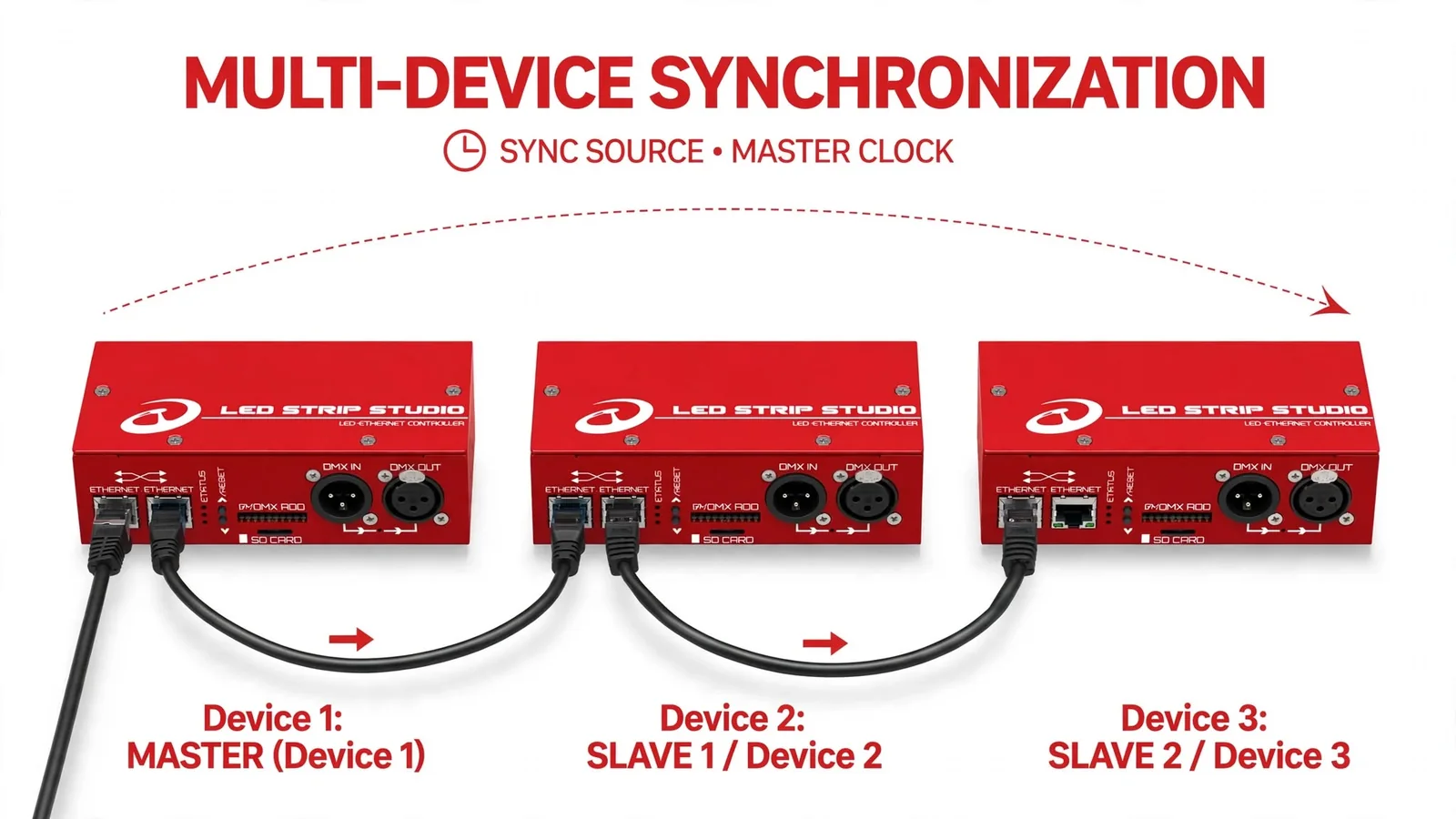

Advanced Multi-Device Synchronization
Synchronize multiple LEC3 controllers in stand-alone mode over Ethernet or DMX, keeping playback precisely aligned across the entire installation. This distributed architecture allows large-scale displays with 100,000+ pixel LEDs to run independently — without a computer — in perfect synchronized harmony.
See how multi-device synchronization works across our controllers.
LEC 3
System Connection
A tightly integrated system where software and hardware work as one—delivering precise, real-time control from creation to output.
LEC 3
Use Cases

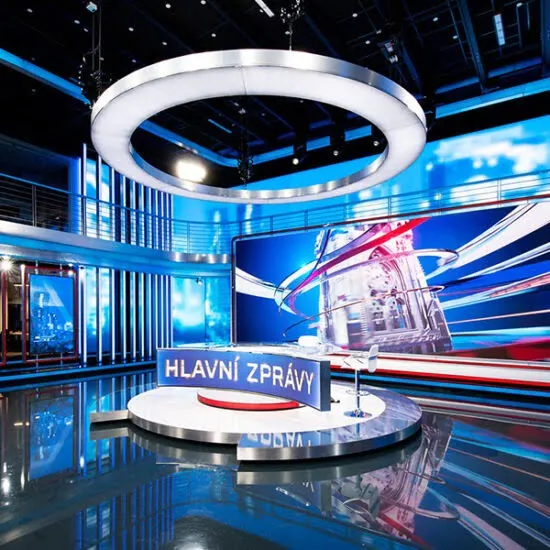

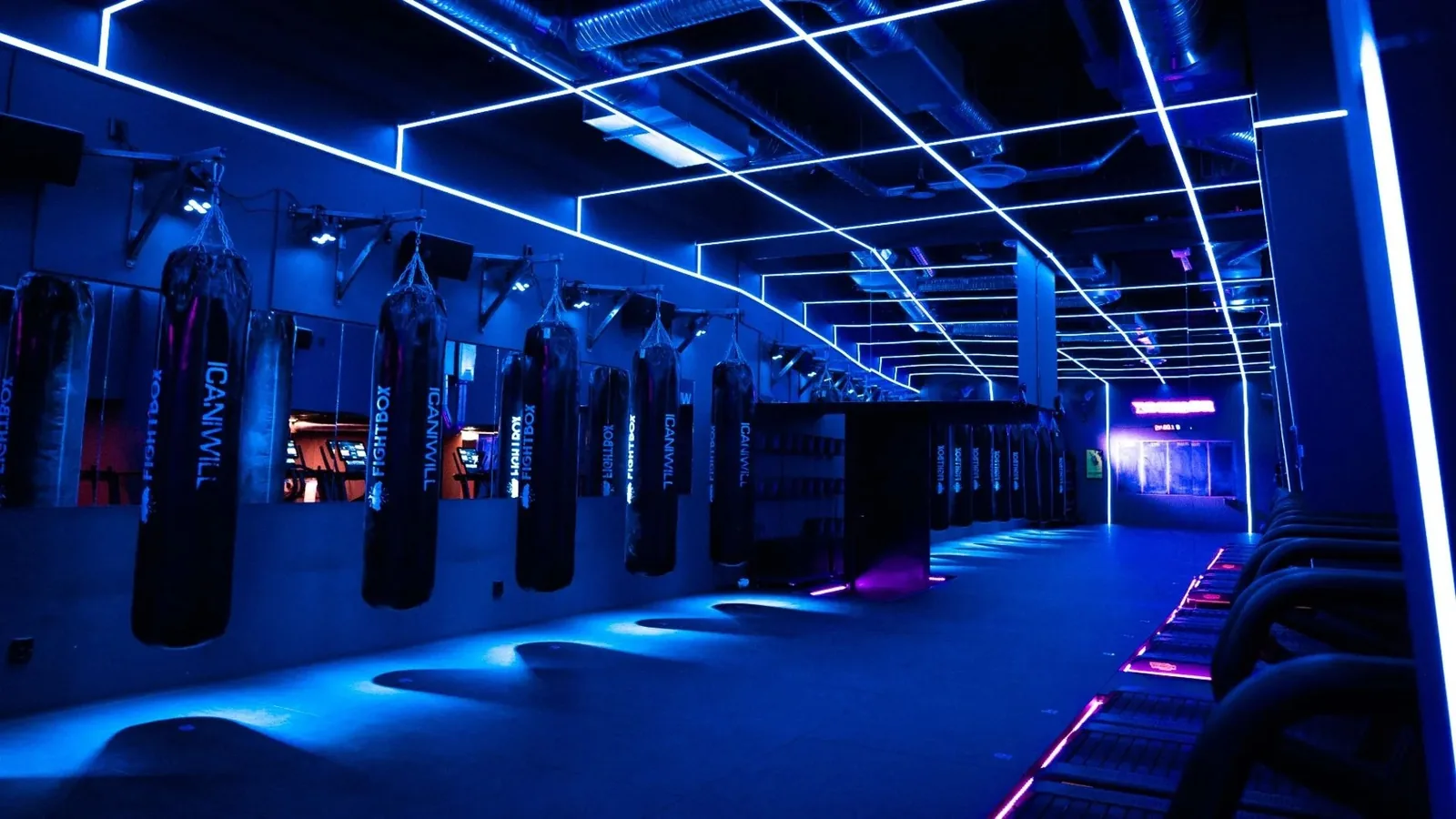

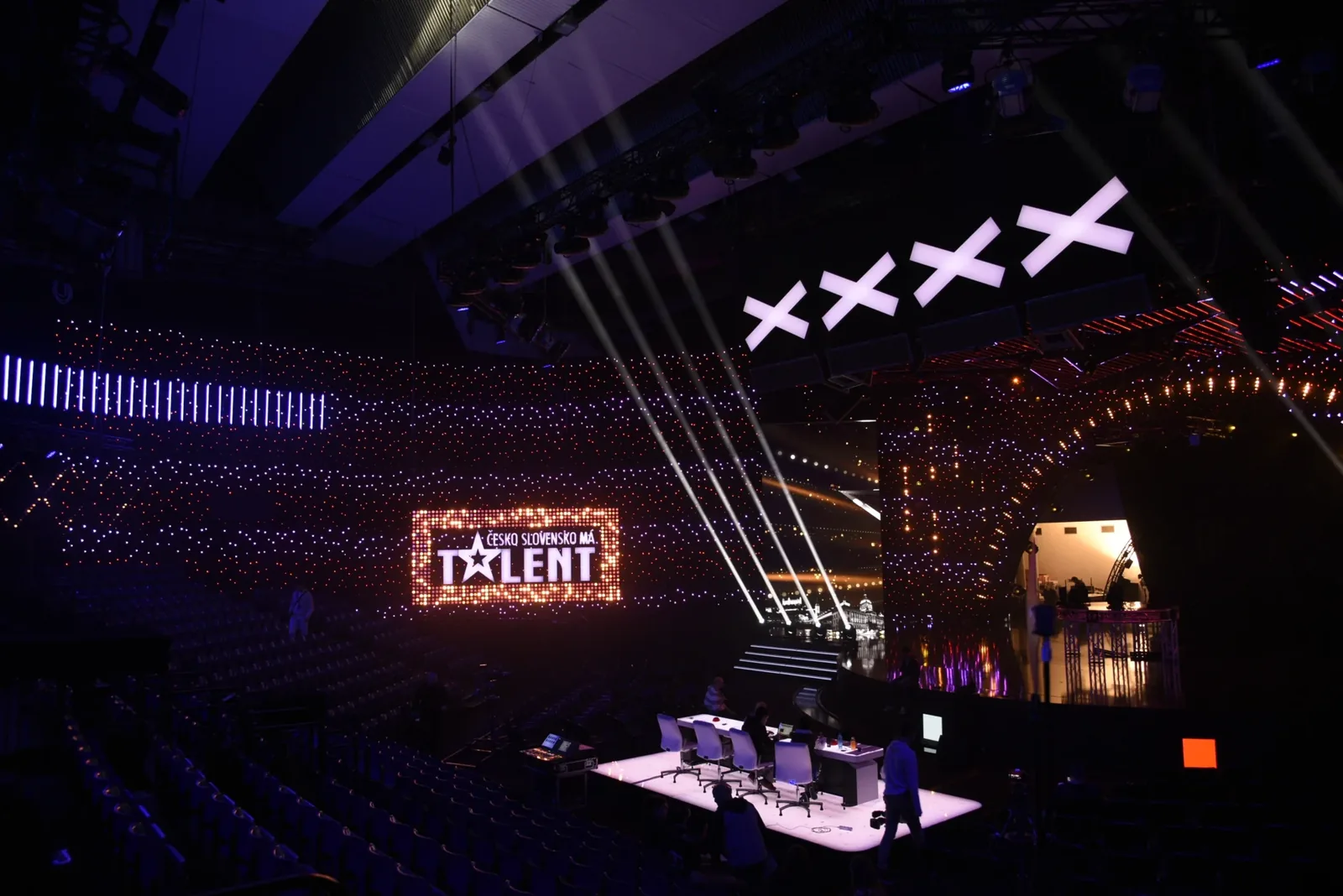

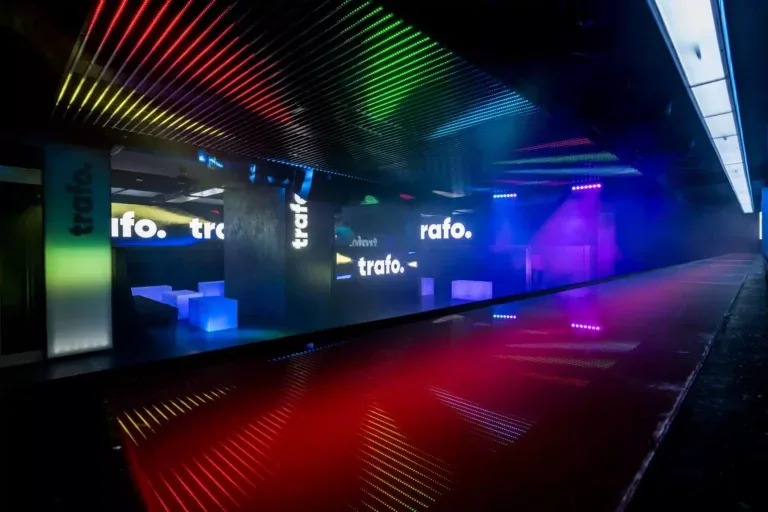

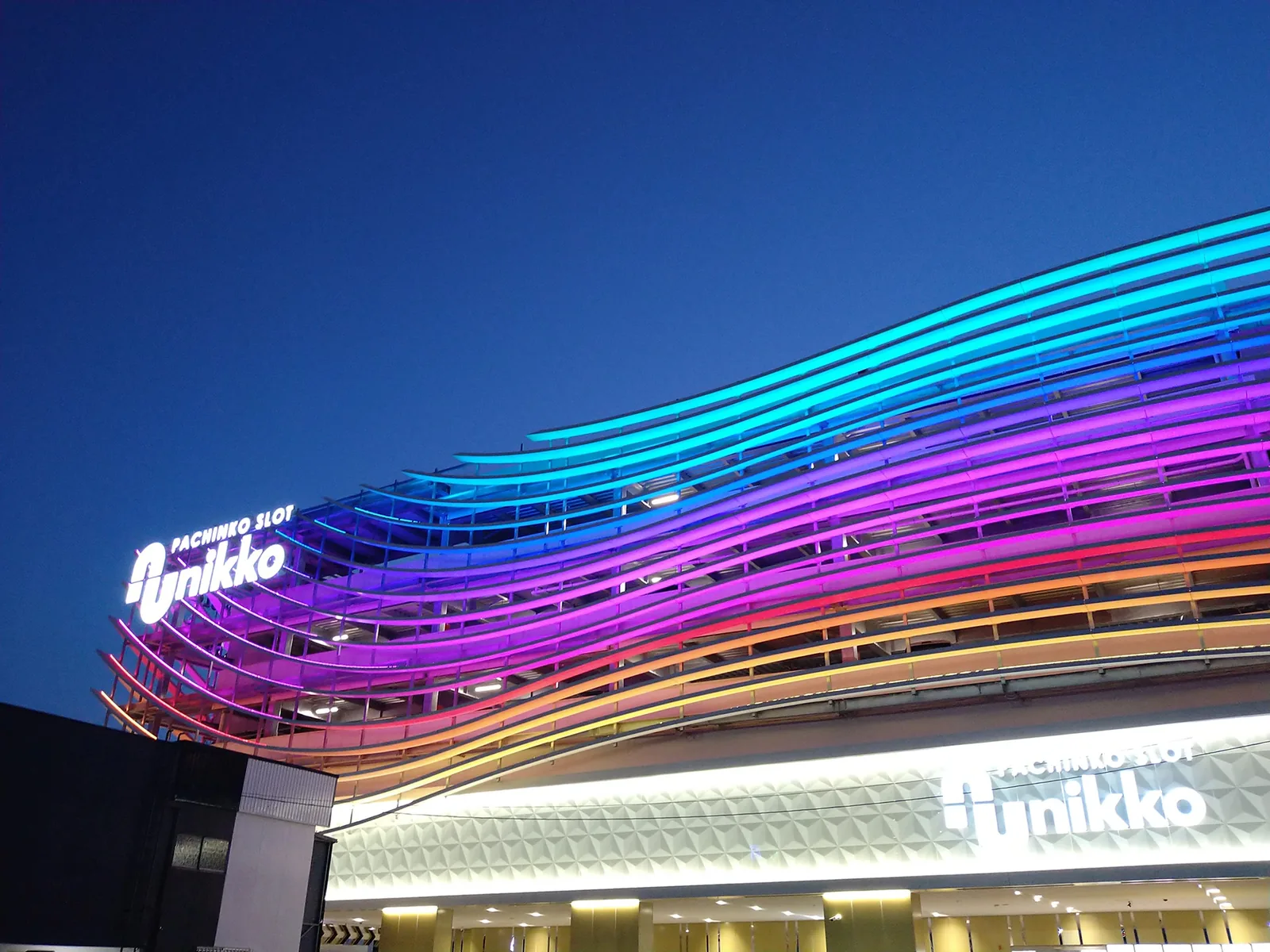

Designed for a wide range of professional LED installations—from live events and touring productions to permanent setups.
LEC 3
Key Features
Precise Pixel Control
Control 4096 RGB / 3072 RGBW pixels with precision across 4 independent SPI outputs.
Read More →Mobile & Web Configuration
Set up and monitor the device easily via iPhone, Android, or any web browser.
Read More →DMX512 Support
Includes separate DMX input and output for integration with traditional setups.
Read More →
Standalone Playback & Sync
Play the show from the SD card with no PC on site, and keep several controllers on the same frame.
Read More →Long-Distance SPI Signal
Built-in Symmetrizer ensures stable signals over 500+ meters of SPI cabling.
Read More →Wide LED Chip Support
TM1809, TM1803, SK6812, WS2811/12, APA102/104, LPD8806, SM16716/26, and more.
Read More →LEC 3
One platform.
Three performance levels.
From compact setups to large-scale installations
Compare LED STRIP STUDIO Controllers
Swipe left to see all controllers →
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Device | LED ETHERNET CONTROLLER 3 | SPI MATRIX | SPI LED CONTROLLER | REACTIVO 2 | POWERED SPI LED 2 |
| LED Outputs | 4 | 4 | 1 | 1 | 1 |
| Max. LEDs per Output | RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
| Max. LEDs per Device | RGB: 1024 – 4096 RGBW: 768 – 3072 |
RGB: 1024 – 4096 RGBW: 768 – 3072 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
| Art-Net™ Universe | 6 – 24 Universes | 6 – 24 Universes | – | 6 Universes | 6 Universes |
| Software License | Lifetime | 1-Year | Lifetime | 1-Year | Lifetime / 1-Year |
| Required Power | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 86 – 264 VAC (built-in PSU) |
| Pass-Thru Current | 20A | 20A | 10A | 7A | 5A |
| Ethernet Ports | 2 | 2 | – | 1 | 1 |
| Wi-Fi | – | – | – | ✓ | ✓ |
| DMX IN Connector | XLR 3-pin (optional 5-pin) | XLR 3-pin (optional 5-pin) | RJ-45 | – | XLR 3-pin (optional 5-pin) |
| DMX OUT Connector | XLR 3-pin (optional 5-pin) | XLR 3-pin (optional 5-pin) | RJ-45 | – | XLR 3-pin (optional 5-pin) |
| LED Output Connector | XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
SH04-5-GY | 15EDGK-3.5-04P-14-00Z(H) TME: 15EDGK-3.5/4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
| Power Connector | XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
SH04-5-GY | DC Jack | IEC C14 |
| SD Card | ✓ | ✓ | ✓ | ✓ | ✓ |
| Real-time Art-Net™ Software Control | ✓ | ✓ | – | ✓ | ✓ |
| Real-time LSS Software Control | ✓ | ✓ | – | ✓ | ✓ |
| DMX Synchronization | ✓ | ✓ | ✓ | – | ✓ |
| Ethernet Synchronization | ✓ | ✓ | – | ✓ | ✓ |
| DIP Switch | ✓ | ✓ | – | – | – |
| SPI LAMP Support | ✓ | ✓ | – | – | – |
LEC 3
See LEC3 in Action
A closer look at the LEC3 digital pixel LED controller.
LEC 3
FAQ
LEC3 drives up to 4096 RGB or 3072 RGBW pixels across 4 independent SPI outputs. More in Precise Pixel Control per SPI Output.
Yes. LEC3 natively supports Art-Net and sACN, alongside DMX and LED Strip Studio software control.
Yes. LEC3 works in stand-alone mode, playing pixel LED content directly from an SD card. More in Standalone Playback and Sync from SD.
Yes, a lifetime LED Strip Studio license is included with every LEC3. More in Software activation for LEC3 device?
A built-in Symmetrizer keeps the signal stable over 500+ meters of SPI cabling. More in Long-Distance SPI Signal to 500 Meters.
Configure it from the web browser of your iPhone, Android phone, or desktop — no extra app required. More in Mobile & Web Configuration Without a PC.
