Clean DMX. Isolated Input.
Xmas Dimmer takes DMX512 on a 3-pin header with an opto-isolated, ESD-protected input. The included break-out cable connects it to standard XLR DMX cables, so the board drops into any DMX line.
Connection
From XLR to the 3-pin header

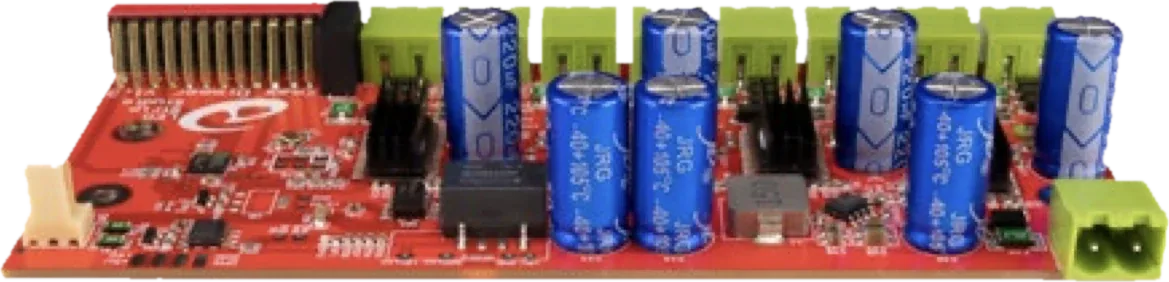

Plug the included DMX break-out cable into the board's 3-pin DMX header. Its XLR connectors use the standard DMX512 wiring: pin 1 GND, pin 2 DMX−, pin 3 DMX+.
Connect the console to one XLR connector and continue the DMX line to the next fixture from the other.
- 3-pin DMX header on the board
- DMX break-out cable to XLR included
- XLR pin 1 GND, pin 2 DMX−, pin 3 DMX+
- Yellow status LED shows when DMX is present
Daisy Chain
One DMX line, many dimmers
The DMX input is optically isolated and ESD-protected, so the DMX line stays electrically separate from the board's power stage.
The DMX512 specification allows 32 devices on one line. For more, use a DMX splitter, and put a DMX terminator at the end of long cable runs.
- Up to 32 devices per DMX line
- DMX splitter for bigger installations
- Terminator at the end of long runs
Pinout
DMX wiring
Standard DMX512 wiring on the XLR side of the break-out cable.
FAQ
DMX input questions
Plug the included break-out cable into the 3-pin DMX header and connect your DMX cable to its XLR connector. Pin 1 is GND, pin 2 DMX−, pin 3 DMX+.
Up to 32 devices under the DMX512 specification. Use a DMX splitter for more, and a terminator at the end of long cable runs.
The yellow status LED lights when a DMX signal is present; the green LED shows power. More in 12-Way DIP Address Switch | Xmas Dimmer.
