Multiple Control Options

Four Ways to Run the Show.

ProfiLED ships with a Powered LEC3 XLR controller that has its own power supply built in. Play from the SD card with no computer on site, take DMX from a lighting desk, receive Art-Net over the network, or drive the bars live from the software.

Explore ProfiLED ProfiLED Datasheet

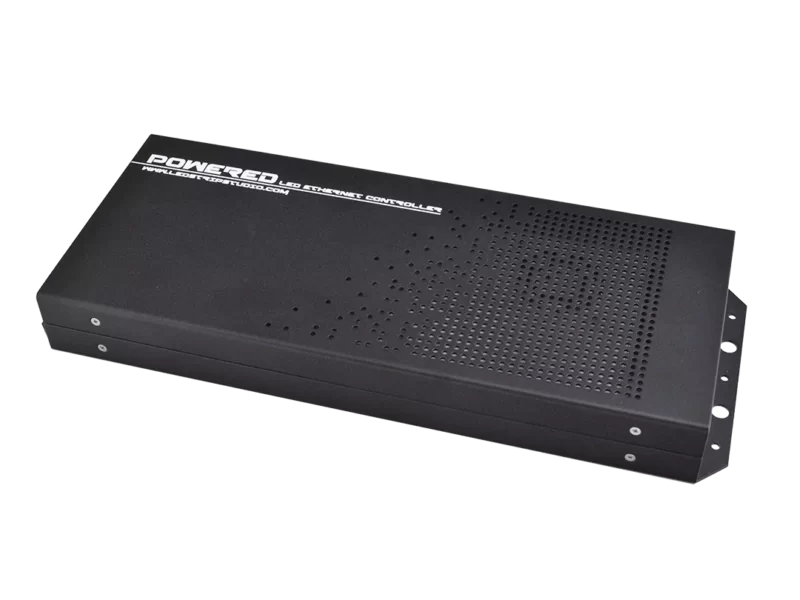

Powered LED Ethernet Controller supplied with every ProfiLED system
4 Control paths
1 Controller included
10 Bars per controller
0 Computers needed on site

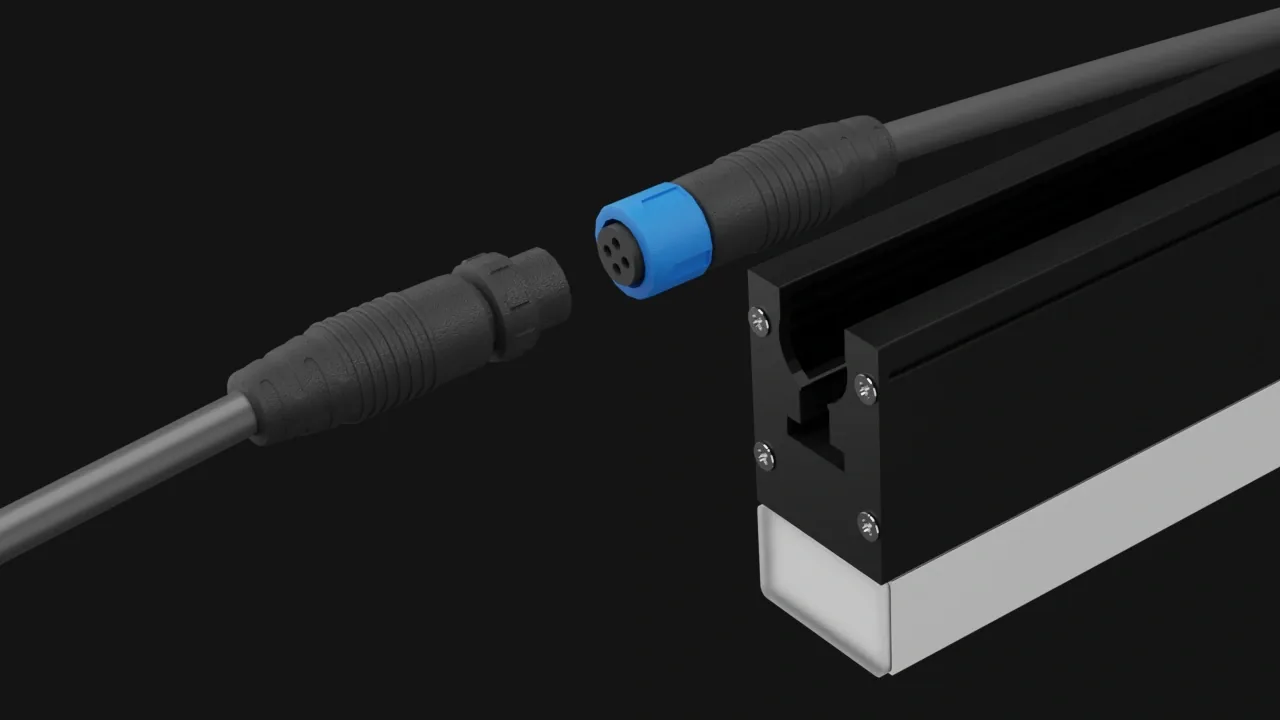

Push-lock M12 connector joining two ProfiLED bars together

The Controller

One box, power included

The Powered LEC3 XLR that comes with a ProfiLED system combines the controller and its power supply in a single housing, so a rig needs one device rather than a controller plus a separate supply.

It drives up to 10 bars daisy-chained from one output, which is the full 10 meter run described on the ProfiLED page.

  • Controller and power supply in one housing
  • Up to 10 bars daisy-chained from one controller
  • 4-pin M12 push-lock connectors between bars
ProfiLED bar clamped to a truss with a standard rigging clamp

Choosing a Path

Which control path fits the job

A permanent installation usually runs stand-alone from the SD card, because nothing on site then has to be switched on or maintained. A touring rig more often takes DMX from the desk that already runs every other fixture.

Art-Net suits setups where media servers or mapping software already send pixel data over the network. Live control from LED Strip Studio is the path used while the content is being designed.

  • Stand-alone playback from the SD card, no computer on site
  • DMX from a lighting console
  • Art-Net over the network from media servers or mapping software
  • Live control from LED Strip Studio while designing

FAQ

Multiple Control Options questions

No. The controller plays content from its own SD card, so a finished installation runs with no computer on site. Full answer in Does LED Playback Require a Dedicated PC?

Yes. The controller accepts DMX, so the bars can run from the same console as the rest of the rig. More in DMX512 In and Out on LSS Controllers.

Yes. Every system ships with a Powered LEC3 XLR controller that has its power supply built in. More in ProfiLED — Plug & Play LED Bar System.

Planning a ProfiLED Rig?

Book a free consultation and we'll size the bars, the controller and the power for your project.

Book a Free Consultation →
