How Is Pixel LED Used on Video Production Sets?
A video set is lit for the lens, and the lens is less forgiving than the eye. It shows banding, colour shifts and hot spots that nobody on the floor notices until the rushes are reviewed. Pixel LED for video production turns scenic lighting into a controllable part of the frame. Each LED keeps a colour of its own, and each look can be recalled for the next take.
This article compares scenic fixtures for film, commercial and music video sets. It explains why cameras see flicker that people miss and how to prepare a pixel rig before the shoot. It is written for gaffers, production designers, rental companies and integrators.
What Is Pixel LED for Video Production?
Pixel LED for video production means scenic fixtures inside the shot whose LEDs are each controlled separately from software. These are the practicals of a modern set: light lines in walls, glowing props, stage edges and backdrops. The key, fill and back lights on the talent remain a separate job.
What changes is the unit of control. A single-colour strip has one dimmer, so the whole run brightens or fades together. An addressable strip behaves like hundreds of tiny fixtures, and a pixel LED controller turns network data into a value for each one.
For a production, the art department can restyle the set without an electrician. A music video can run a chase across the whole backdrop. A commercial can match a brand colour exactly and hold it through every setup.
Which Scenic Fixtures Suit a Production Set?
The right fixture depends on what the light has to do in the frame. The table reflects our judgement from project work rather than measured data, so treat it as a starting point for planning.
| Criterion | Single-colour dimmable strip | RGB / RGBW strip via DMX decoder | Addressable pixel strip | LED screen panels |
|---|---|---|---|---|
| Control unit | Whole strip | Whole strip or segment | Every LED | Every screen pixel |
| Moving effects along the set | No | Limited, per segment | Yes | Yes, full video |
| Shaping to set geometry | Very flexible | Very flexible | Very flexible | Flat or stepped surfaces |
| Typical role on set | Static glow, coves | Colour washes, mood changes | Scenic lines, chases, reactive looks | Backgrounds, content walls |
| Main camera risk | Flicker at low dim levels | Colour mismatch between segments | Flicker, visible dots without diffuser | Moiré, panel seams |
Most production sets combine addressable strip and screen panels. The panels carry picture content, and the pixel strips draw the architecture around them.

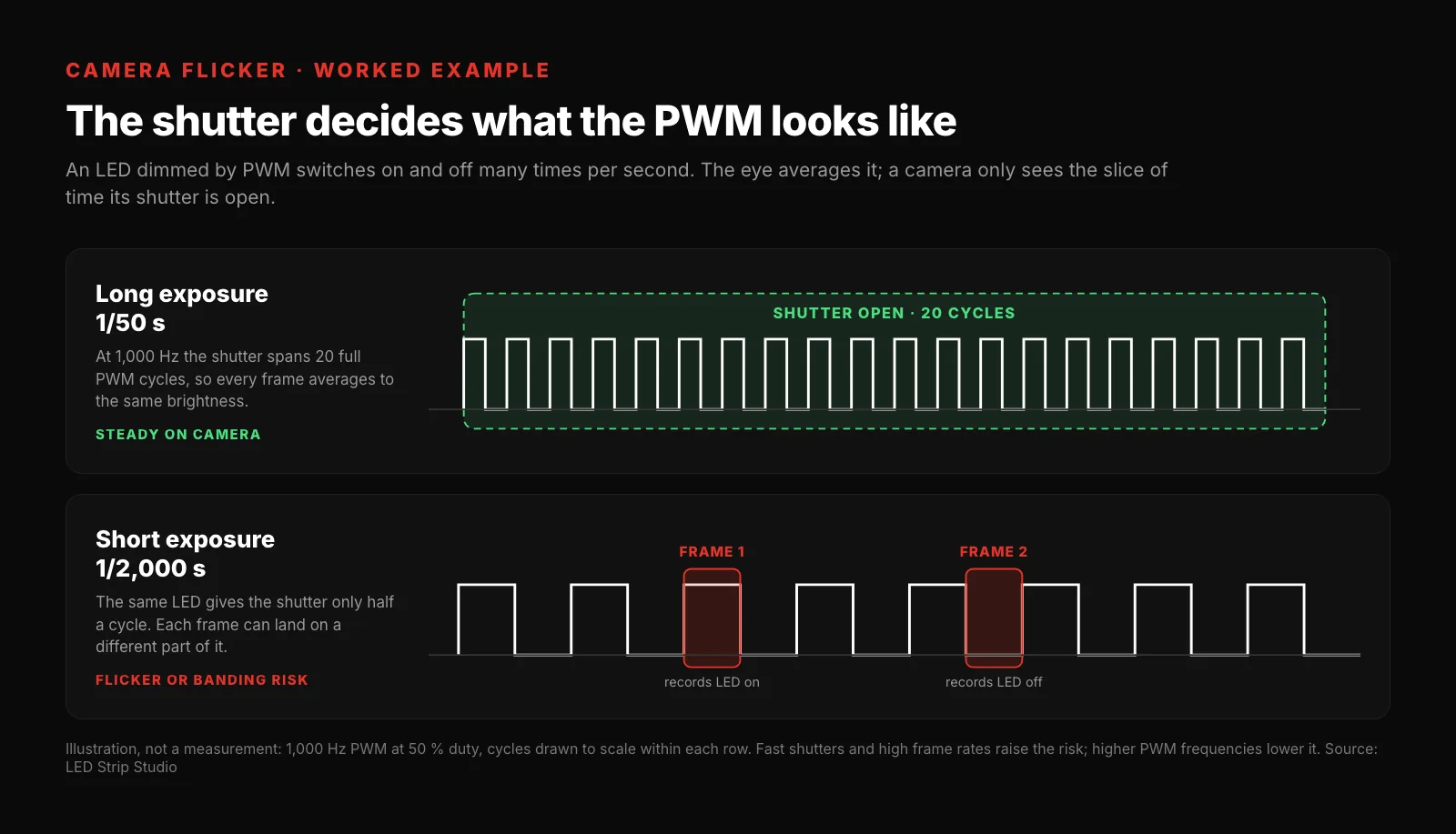

Why Does the Camera See Flicker the Eye Misses?
Most LEDs are dimmed by PWM. They switch on and off very fast, and the share of time spent on sets the brightness. The eye averages the pulses, but a camera only collects light while its shutter is open.
A short exposure can therefore catch the LED in a different state on each frame, or on each line of a rolling shutter. At 1,000 Hz, a 1/50 s exposure spans 20 PWM cycles, while a 1/2,000 s exposure sees only half of one (calculated). Slow-motion passes push the shutter shorter still. A higher PWM frequency lowers the risk but does not remove it.
Our Xmas Dimmer is a useful benchmark. It switches at about 1,000 Hz and is flicker-free on most video cameras, though not all, because its polarity-switching output always pulses. With pixel strip, the LED chip sets the frequency. Our guide to pixel LED chips for large projects lists TM1829 at about 7,000 Hz among the high-PWM chips suited to broadcast work.
Source: LED Strip Studio
Which Diffuser Works Best on Camera?
The diffuser decides whether the camera records a line of light or a row of dots. Without one, individual LEDs read as hot points, especially in close-ups and with shallow focus.
Dark materials trade brightness for saturation and low reflections. On the CNN Prima NEWS set, black plexiglass meant installing two strips in every segment, as described in our guide to pixel LED for TV studios. Put diffuser samples in front of the production camera before any strip is ordered.
What Has Camera-Facing Work Taught Us?
Our clearest production example is a TV commercial for Tipico. The glowing square frames above the performer are built from ProfiLED pixel LED bars. The bars carry 60 pixels per metre and join with push-lock M12 connectors, so shapes like these go up on set without soldering.
A smaller camera-facing set runs in our own studio. It is a digital horizon made of addressable LED strips, driven by one LEC3 with live content from our software. It appears as the background in the videos we record ourselves.
Its most useful trick has nothing to do with effects. When a shot needs keying, the whole wall switches to flat green with two taps in our LED controller mobile app. Nobody has to open a project on a computer between setups.
Source: LED Strip Studio
Broadcast sits at the other end of the scale. The CNN Prima NEWS studio in Prague runs about 84,000 pixels from 25 LEC3 controllers and one laptop. Two habits from that build carry straight over to film and commercial work: approve colour on the real camera, and never fill a controller to its limit. A production set lives for days rather than years, but the camera judges it by the same rules.

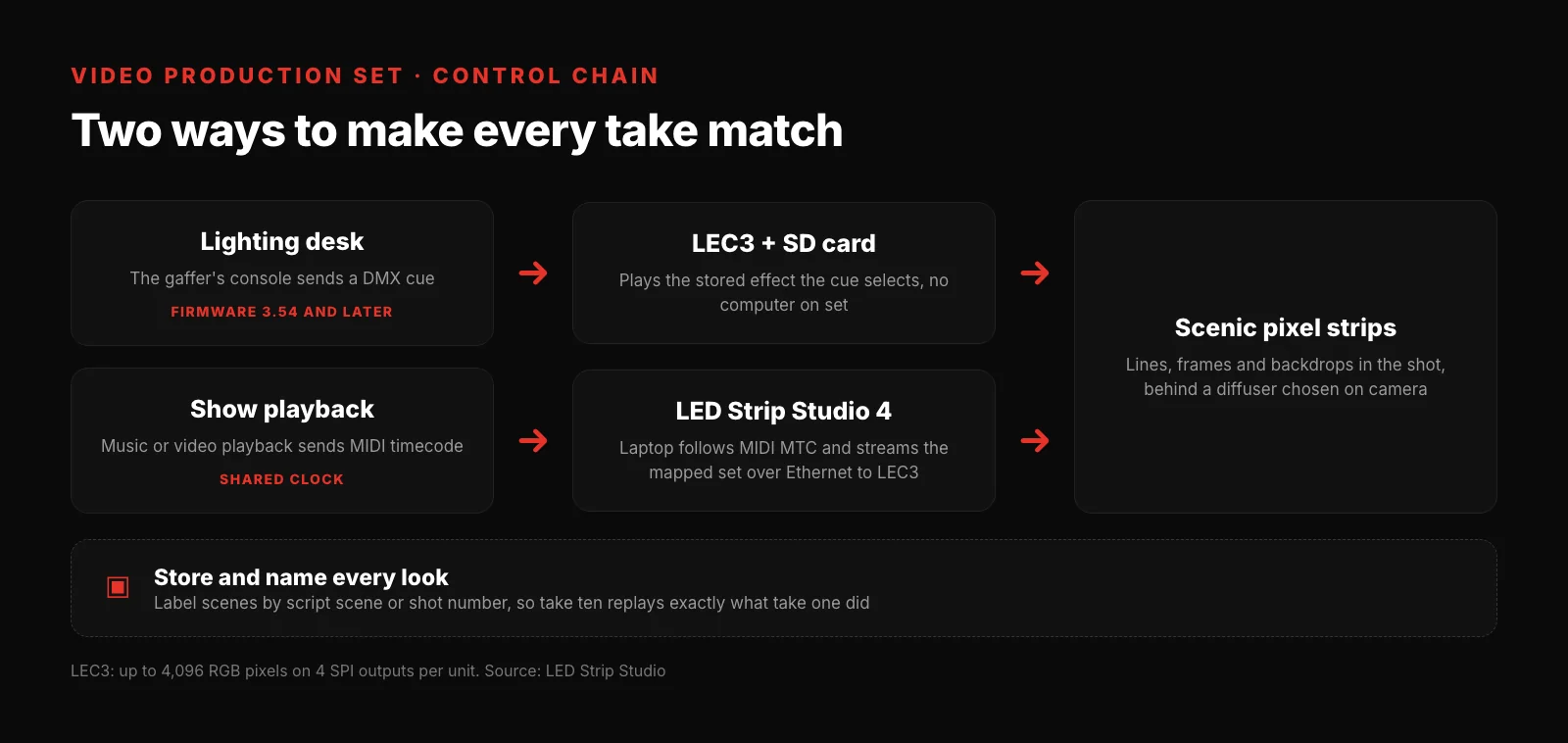

Can a Pixel Set Repeat the Same Cue in Every Take?
Yes, if the cues are stored rather than improvised. Continuity depends on the light doing exactly the same thing when the director calls action for the tenth time.
Two methods are proven in our projects. On an outdoor event stage in Serfaus, LED cues fire against MIDI timecode, so light, music and performers share one clock. On a set, LED Strip Studio 4 can follow MIDI MTC from the playback system in the same way.
The second method needs no computer on set. Since firmware 3.54, a lighting desk can trigger effects stored on the controller’s SD card over DMX. That suits sets where the gaffer already runs every other fixture from a console.
Source: LED Strip Studio
How Do You Prepare a Pixel Rig for a Shoot?
Preparation runs in a fixed order, and most of it happens before the set is built.
- Agree the role of the light in the frame. Background glow, graphic lines and reactive effects need different pixel densities and diffusers.
- Run a camera test with the real settings. Use the planned frame rates, shutter angles and slow-motion passes, not the camera defaults.
- Choose the diffuser, then count the pixels. Dark materials may need twice the strip, so this choice comes first.
- Size controllers with headroom. One LEC3 drives up to 4,096 RGB pixels, and spare capacity absorbs the changes that arrive on shoot day.
- Map the set, not the cable. Draw the layout in pixel mapping software so effects move across the physical set rather than along the wiring.
- Store and label every look. Name scenes by script scene or shot number, and decide who recalls them on the day.
- Keep a neutral state ready. A stored flat green, black or white look covers keying and clean plates without reprogramming.
A kit that serves many productions repays this preparation several times over, because the mapping and the scene library travel with it.
Which Mistakes Ruin Pixel LED on a Set?
Most problems on a shoot come from decisions made during prep, not from faulty hardware.
- Testing by eye instead of by camera. Flicker and colour errors often appear only in the recording.
- Forgetting slow-motion passes. A rig that is clean at normal frame rate can band at high speed.
- Leaving LEDs undiffused in close-ups. Individual dots become visible and distracting.
- Improvising cues live. Without stored scenes, takes will not match in the edit.
- Filling controllers to the limit. The first design change on the day then needs extra hardware.
Preparing a set, a commercial or a music video with pixel LED? Book a free consultation and we will plan the fixtures, control and camera test with you.
Sources & references
- LED Strip Studio — Tipico TV commercial with ProfiLED pixel LED bars (YouTube, March 2026); ProfiLED product page: 60 pixels per metre, M12 push-lock connectors
- LED Strip Studio — digital horizon video background on one LEC3, keyed green from LSS Remote (LED controller mobile app article, September 2026)
- LED Strip Studio — CNN Prima NEWS studio case study, Prague: about 84,000 pixels, 25 LEC3 controllers, black plexiglass diffuser with two strips per segment
- LED Strip Studio — Xmas Dimmer product page and manual: 8-bit dimming at about 1,000 Hz, behaviour on video cameras
- LED Strip Studio Wiki — Most common ICs used in large-scale projects: PWM rate of TM1829
- LED Strip Studio — Serfaus-Fiss-Ladis event stage, cues against MIDI timecode; LED Strip Studio 4 product page, MIDI MTC synchronization
- LED Strip Studio — DMX trigger for LED effects from the SD card (firmware 3.54 and 3.55)
- LED Strip Studio — LEC3 product page: up to 4,096 RGB pixels per controller
Summary
Pixel LED for video production puts scenic fixtures into the shot whose LEDs are each controlled from software, so a set changes its look without rewiring. Addressable strips draw lines and shapes around the set, while LED screen panels carry picture content. Cameras reveal PWM flicker the eye misses, especially with fast shutters and slow-motion frame rates, so every rig needs a camera test with the real settings. Choose the diffuser on camera before ordering strip, because a dark one can double the strip count. Store every look and recall it from MIDI timecode in LED Strip Studio 4 or from a DMX cue to LEC3, so every take matches. In a Tipico TV commercial, square frames of ProfiLED pixel LED bars formed the scenic light above the performer.
