How Does Pixel LED Advertising Work for OOH Displays?
An advertisement outdoors has one second to earn a second look. Pixel LED advertising gets that second because the surface moves: a logo travels across a facade, a slogan scrolls along a shop window, a car body plays video. Every LED holds its own colour, so the shape of the object stops being a limit.
This article is written for agencies, sign makers and brand owners planning out-of-home pixel LED displays, static or mobile. It explains what changes between a facade, a vehicle and a wearable act. It also shows how a logo or text ends up on the pixels, and which controller plays the ad on its own.
What Is Pixel LED Advertising?
Pixel LED advertising is an out-of-home display built from addressable LEDs instead of a rectangular screen. Each LED, or small group of LEDs, is a pixel with its own address, so any surface the strips follow becomes a low-resolution screen in that shape. A pixel LED controller feeds the pixels, and the content is produced in mapping software.
That is the difference from a conventional LED sign. A backlit sign shows one image until somebody changes the print. An LED screen shows anything, but only as a rectangle bolted onto the building. Pixel strips sit on the cornice, inside the letters or around the car door, and the content follows the object.

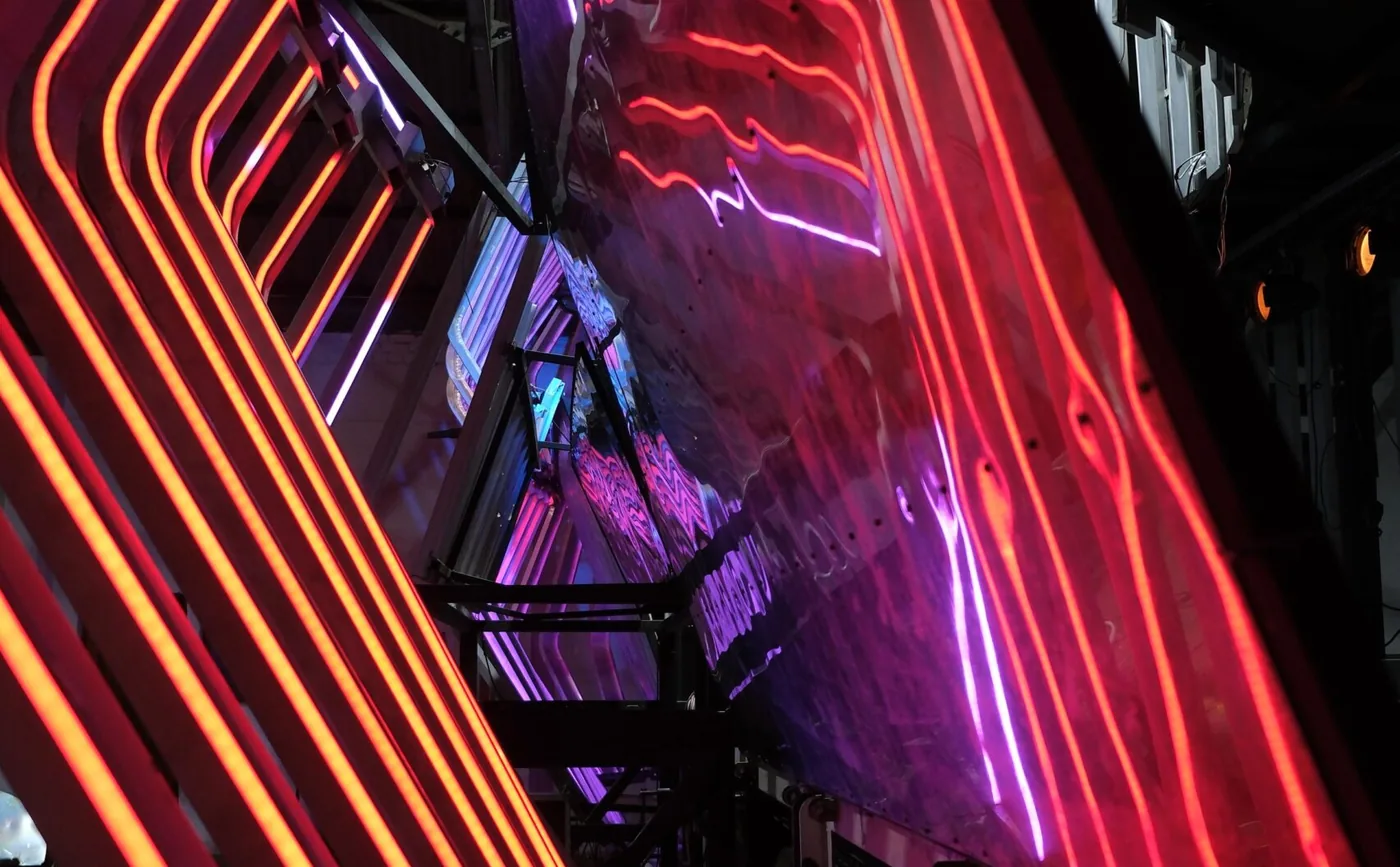

The idea has a name in our projects: the any-shape LED screen. A circle, a sphere, a facade opening or a whole car can be covered and mapped as one display. Our article on what a pixel LED installation really costs explains why the mapping, not the strip, is the expensive part of that.
Source: LED Strip Studio

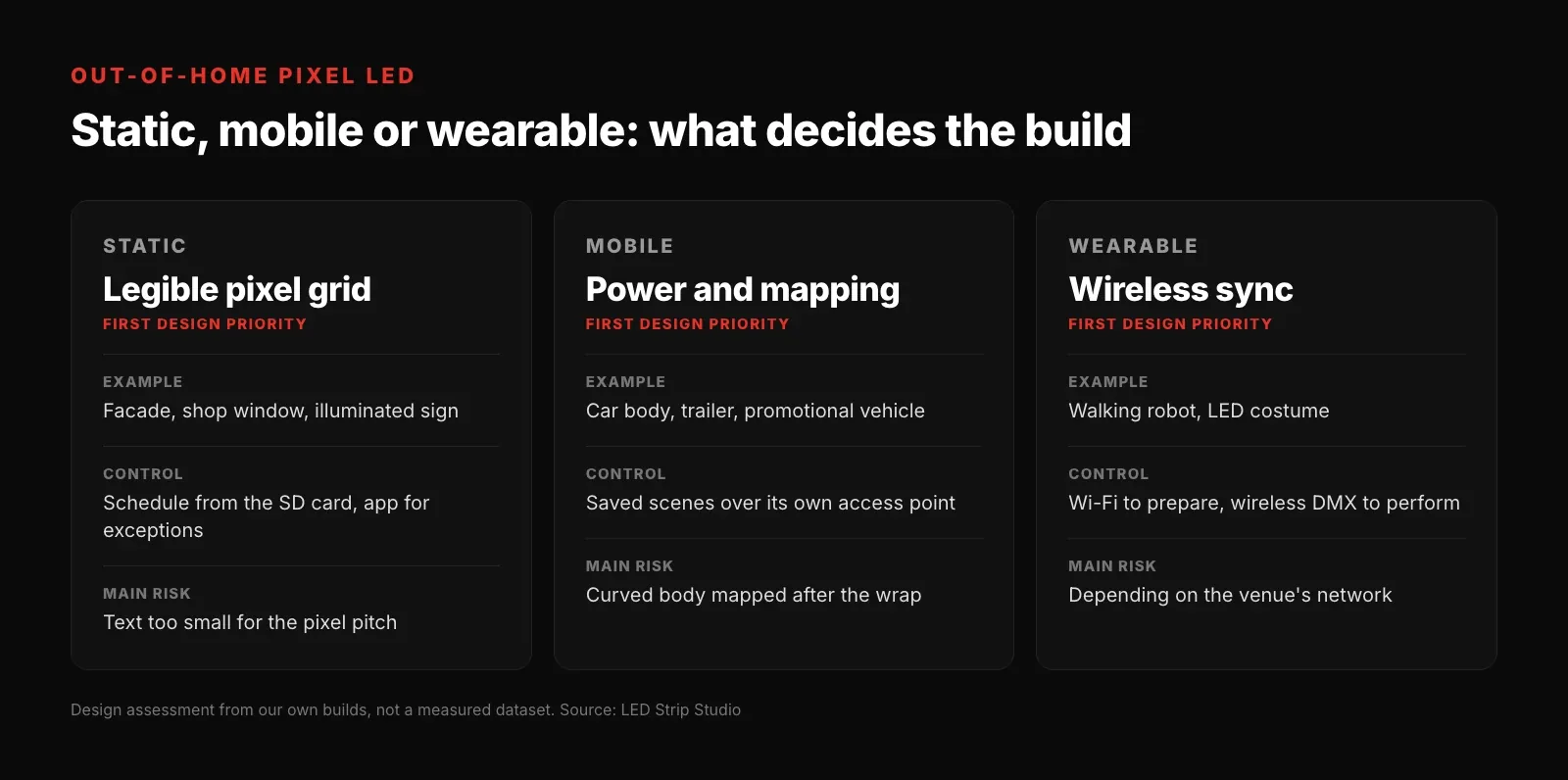

Static, Mobile or Wearable: What Changes?
Out-of-home pixel displays come in three build types, and the type decides the specification more than the brand does. The comparison is our design assessment from these builds, not a measured dataset.
| Criterion | Static: facade, shop window, sign | Mobile: vehicle or trailer | Wearable: costume or walking act |
|---|---|---|---|
| Where the controller sits | Indoors, cable to the strips | On board, on the vehicle’s supply | Inside the suit, on its own supply |
| Control | Schedule from the SD card, app for exceptions | Saved scenes, own access point | Wireless: Wi-Fi to prepare, wireless DMX to sync |
| Mapping | Straight runs and outlines | Curved body panels, one map for the whole car | Panels on moving limbs |
| Protection | Sealed strip in a tube inside a profile | Vibration, weather, washing | Handling, sweat, repeated dressing |
| Content refresh | Per campaign or season | Per event | Per client, on the day |
| Biggest risk | Text too small for the pixel grid | Power and mapping decided after the wrap | Depending on the venue’s network |
How Does a Car Become a Screen?
By treating the body as one map. On one of our projects an entire car was covered with addressable strips, so the car itself became a screen in the shape of a car. Curved panels, wheel arches and the roof are drawn in the software exactly where the strips sit, and video then plays across the whole body instead of along each strip.
A vehicle brings its own constraints. The strips ride on the car’s power, every joint has to survive vibration and washing, and the map cannot be built from a drawing alone. Mapping can even be done remotely. On an installation in Saudi Arabia, the team on site pointed a camera at each section while the map was built over a video call.
What Does a Walking Costume Need?
Wireless everything. Our event agency TRON built a walking robot 2.5 m tall with almost 2,000 pixels on its suit, driven by one LEC3 inside. It shows logos, text and video while walking, and at exhibitions and parties it is the act people queue to photograph.
It carries two wireless links. Ordinary Wi-Fi is for building and testing the show. For the performance it switches to wireless DMX for sync, and if reception drops for a moment it locks back onto the master computer as soon as the signal returns. More photos are on our Our Work page.
Source: LED Strip Studio
How Do You Put a Logo or Text on Pixels?
As layers in LED Strip Studio 4. A logo is an image or video layer mapped onto the pixels. Text is its own layer: type it, choose scrolling or static, set the speed, colour and size, and pick any standard TrueType font. A Vertical option turns a horizontal ticker into a vertical one, which suits a narrow column or a door frame.
Text can sit on top of a video, a colour effect or a live stream, so a slogan can run over the brand animation. The steps are in our Wiki articles on scrolling text on addressable pixels and vertical scrolling text.
How Many Pixels Does Readable Text Need?
More than a decorative outline has. Text needs rows of pixels, not one line of them. On the Bad Ischl congress hall windows, a pitch of about 46 mm gives roughly 27 pixel rows across 1.25 m of height. That is enough for one clear line of text. Halve the rows and a logo turns into a coloured blob.
Decide the pixel pitch from the content, not from the strip catalogue. A slogan needs a dense grid on a small area; a colour wave across a facade works with 30 pixels per metre on a single line. For letters and logos that only need a continuous glow, LED neon in RGB is the simpler carrier.
Source: LED Strip Studio
Which Controller Runs an Advertising Display?
The controller follows the size of the surface and who changes the content.
| SPI LED Controller | Reactivo 2 | LEC3 | |
|---|---|---|---|
| Best for | Signs, shop windows, small vehicles | Interactive displays, sensors, phone control | Facades, large surfaces, multi-controller shows |
| Pixels | 1,024 RGB / 768 RGBW | 1,024 RGB / 768 RGBW | 4,096 RGB / 3,072 RGBW |
| Plays without a PC | Yes, default file starts at power-on | Yes, up to 255 effects on the SD card | Yes, from the SD card |
| Changing the ad | Two buttons or DMX | LSS Remote app, buttons, sensors | LSS Remote app, DMX, Art-Net |
| Mounting | DIN rail, 5–24 V DC | Compact, Wi-Fi or Ethernet | Rack or cabinet, Ethernet |
The SPI LED Controller is the typical choice for a sign. In standalone mode it plays the file named in its settings as soon as power comes on, with no computer anywhere. Reactivo 2 suits a display that should react to a passer-by, a button or a sensor, and lets staff switch campaigns from a phone. LEC3 takes over when the surface runs past a thousand pixels.
Who Changes the Campaign?
Whoever owns the space, from a phone. On a showroom facade we lit for a numismatic auction house, the client recalls scenes 24/7 from the LSS Remote app over the in-house network. A new look for an auction day takes seconds and no site visit. The full build is in our pixel LED showroom lighting case study.
The same rule applies to a vehicle or a costume: the scenes live on the SD card, and the app or the buttons only pick which one plays. New campaigns are software work between events, never on the morning of one.
Which Mistakes Ruin Pixel LED Advertising?
Most disappointing displays were decided before the first strip was cut.
- Choosing the pitch before the message. A slogan on a sparse grid is unreadable; count the rows the text needs first.
- Programming a light show instead of an ad. Fast saturated effects draw the eye and then lose it; a slow logo reveal reads better than a strobe.
- Leaving content out of the budget. Nobody is contracted to produce the animation, so the display runs one clip forever.
- Depending on the venue’s Wi-Fi. A mobile or wearable display carries its own network, or it fails at the venue that has none.
- Skipping outdoor protection. A sign or vehicle lives in rain and cold: sealed strips in tubes inside profiles, controllers in a dry enclosure.
- Budgeting the strip and not the hours. Physical work runs at roughly one hour per metre of strip, before mapping and content.
Planning a pixel LED sign, vehicle wrap or walking act? Book a free consultation and we will size the pixel grid, the controller and the content around your campaign.
Sources & references
- LED Strip Studio — What a pixel LED installation really costs: any-shape LED screen, the covered car, remote mapping, one hour per metre
- LED Strip Studio — TRON pixel LED robot, Our Work page: 2.5 m, almost 2,000 pixels, LEC3, Wi-Fi and wireless DMX
- LED Strip Studio — Congress hall in Bad Ischl: 46 mm pitch, about 27 pixel rows for one line of text
- LED Strip Studio — Pixel LED showroom lighting: LSS Remote over the in-house network
- LED Strip Studio — Wiki: scrolling text on addressable LED pixels, vertical scrolling text, SPI LED Controller standalone mode, LED neon
- LED Strip Studio — SPI LED Controller, Reactivo 2 and LEC3 product pages: pixels per controller, SD card playback, control options
Summary
Pixel LED advertising turns any surface into a low-resolution screen that carries a logo, text or video, from a shop facade to a car body or a walking costume. The build type decides the specification: a static installation needs weather protection and a schedule, a vehicle needs its own power and mapping of a curved body, and a wearable act needs wireless control. Text and logos are created as layers in LED Strip Studio 4 and need enough pixel rows to stay legible: about 27 rows was enough for one clear line on the Bad Ischl windows. A standalone SPI LED Controller plays the ad from its SD card without a computer, Reactivo 2 adds sensors and phone control, and LEC3 drives up to 4,096 pixels for large surfaces. Content is the line item to budget first.
