How Do You Run Traditional Christmas Lights From a Lighting Console?

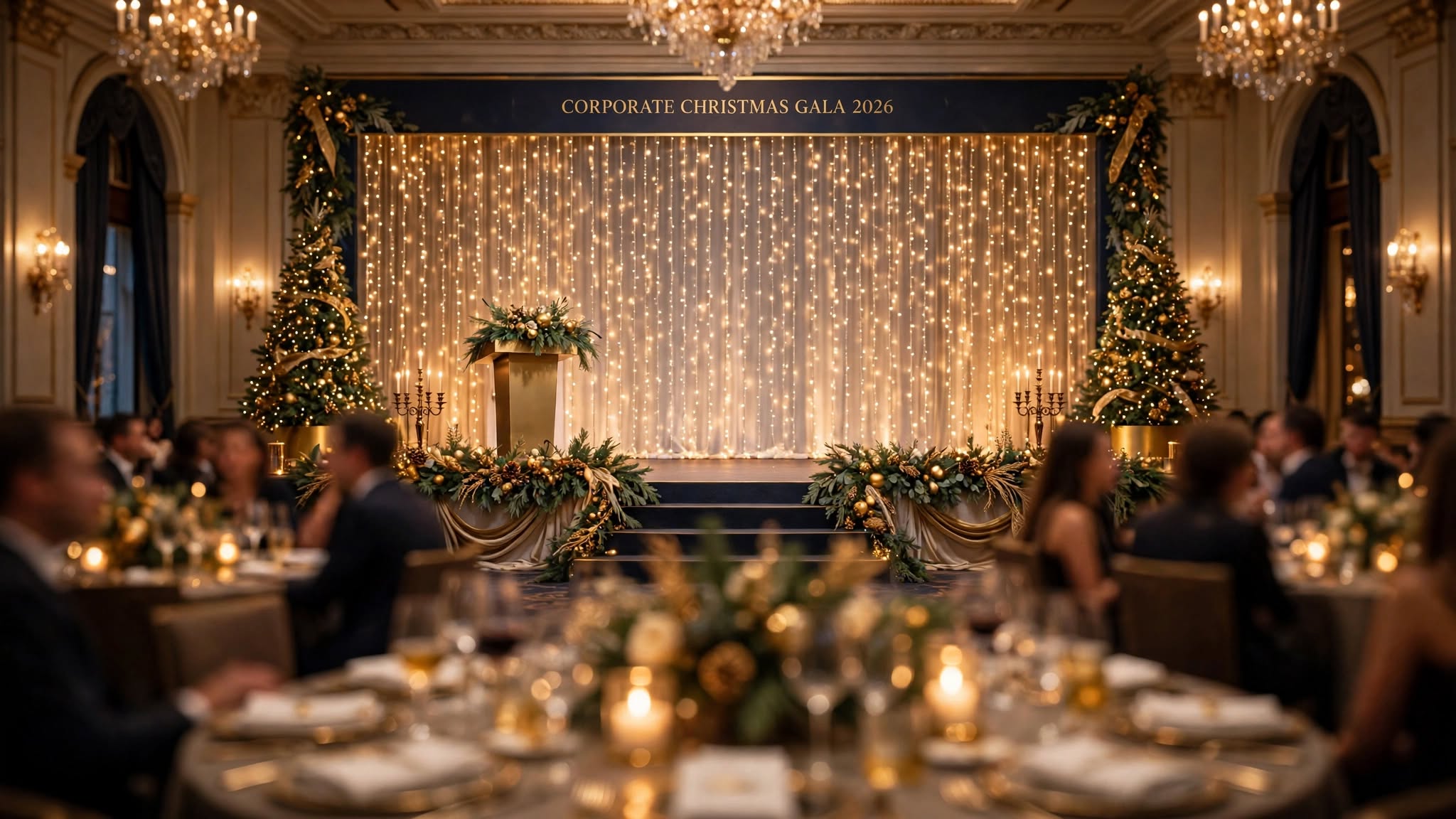

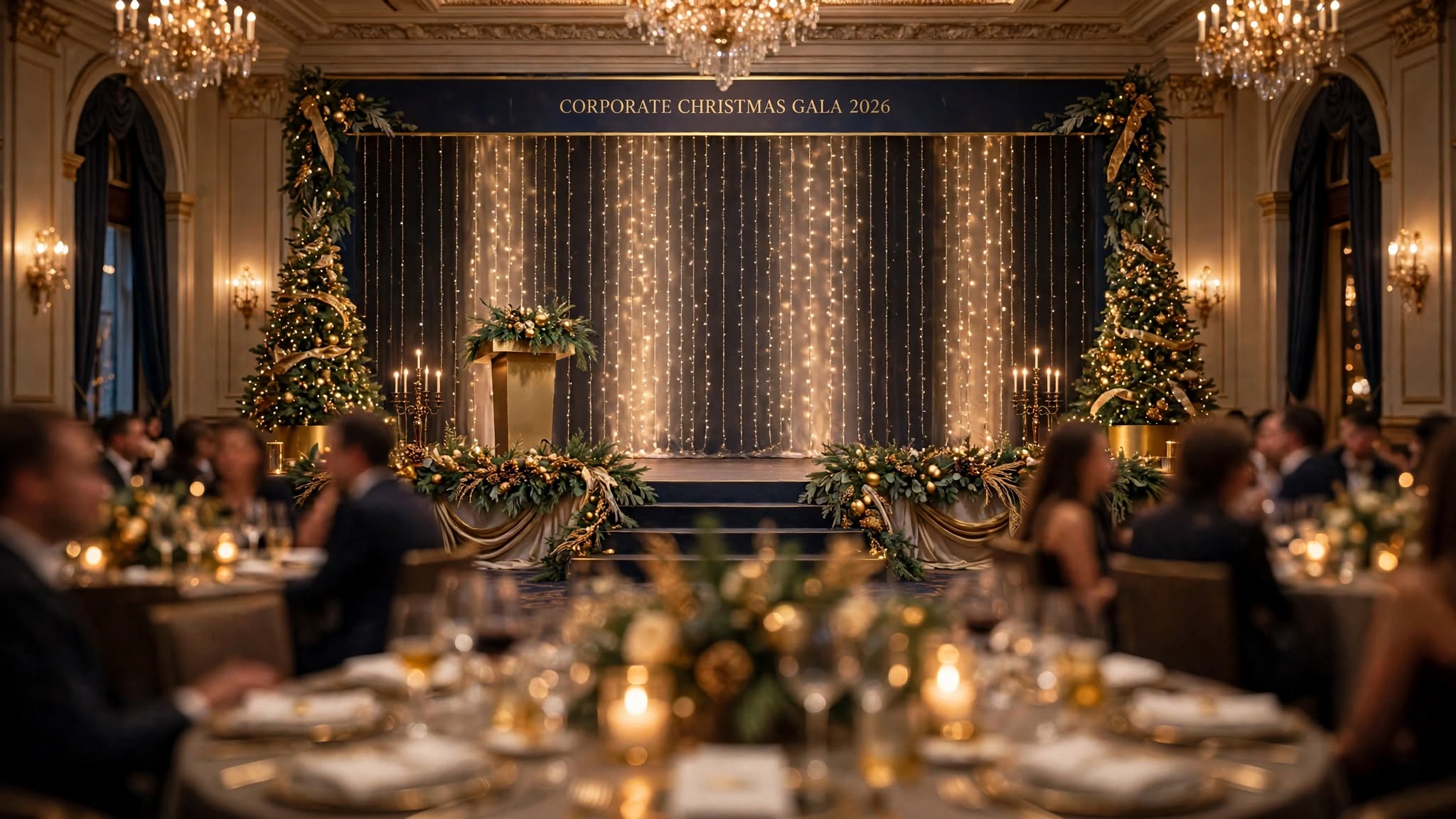

A corporate gala, a Christmas TV special or a hotel ballroom — and the brief asks for classic warm-white fairy lights, not RGB pixels. The problem is that traditional Christmas lights arrive with a small controller box and a handful of fixed blink modes. None of them can follow a cue list.
This article shows how to get the same strings onto your lighting console as ordinary DMX channels, fades and chases included.
- Traditional strings are anti-parallel: half the LEDs face one way, half the other, on the same two wires.
- A normal DMX dimmer outputs one polarity, so it lights half the string and leaves the rest dark.
- A dual-polarity H-bridge output drives both halves and dims each one separately.
- On the console each string becomes two channels: odd sections on one, even sections on the other.
Why Does a Normal DMX Dimmer Light Only Half the String?
Most traditional Christmas lights are low-voltage strings with an anti-parallel LED connection. Positive polarity lights the odd sections, reversed polarity lights the even ones. The original controller box simply flips polarity in fixed patterns — that is where the blink modes come from.
What Does an H-Bridge Change?
Connected to an anti-parallel string, a single-polarity dimmer lights just half of the LEDs. Crews then fall back on the original box, a relay trick or a custom converter, and none of those gives you a fade on a fader.
The fix is an output that can drive both polarities and dim each of them separately. That is exactly what an H-bridge does, and it is the core of the dimmer described below.
What Does the XMAS DIMMER Give Your Lighting Console?

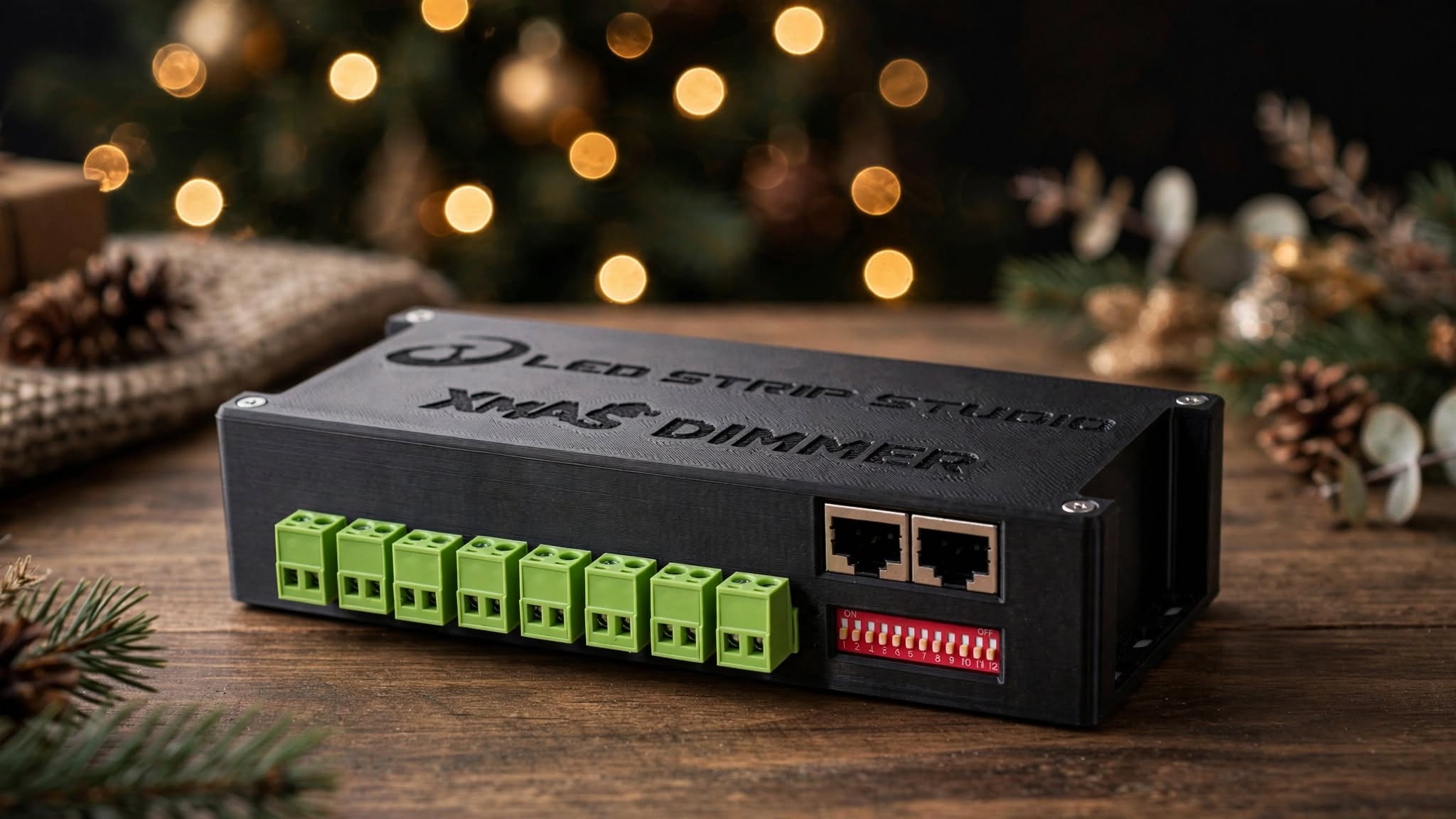

The XMAS DIMMER is an 8-output DMX512 dimmer for 12–36 V DC anti-parallel LED strings. Each output is a full H-bridge controlled by two DMX channels, so one string becomes a two-cell fixture on the console.
| Outputs | 8, full H-bridge, dual polarity |
| DMX channels | 16 total, 2 per output |
| Input voltage | 12–36 V DC — output voltage equals input |
| Current per output | 0.5 A, with a 0.7 A resettable fuse |
| Dimming | 8-bit, 256 levels, PWM approx. 1,000 Hz |
| Addressing | 12-way DIP, set in steps of 16 |
| Per DMX line | 32 units, which is exactly one universe |
| Protection | IP00 bare board, indoor only |

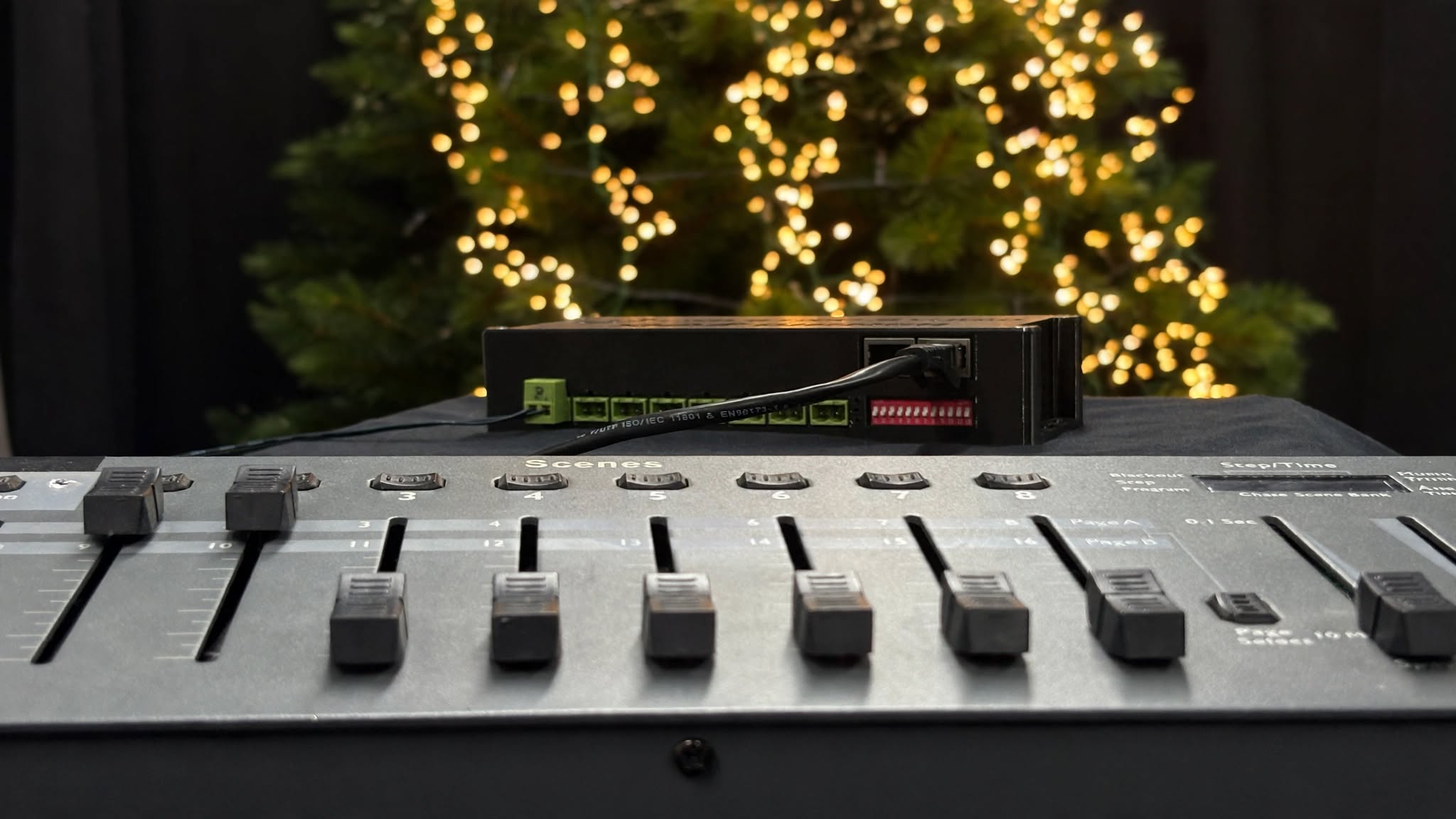

Faders on the console, strings on the dimmer, tree in the background. Source: LED Strip Studio

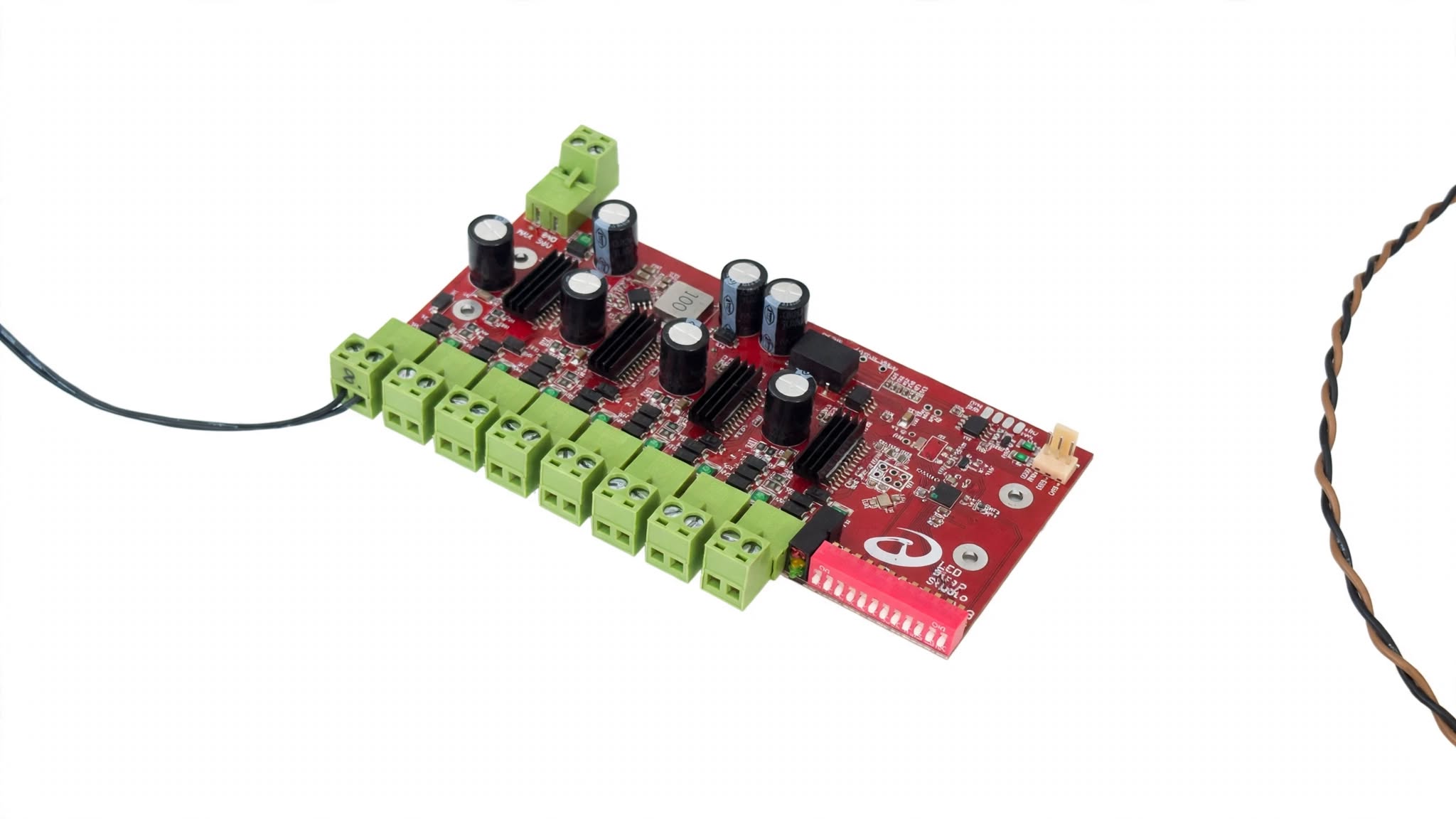

Each string lands on one of the eight output terminals, two wires each. Source: LED Strip Studio
How Do You Power It?
Because the output voltage equals the input voltage, you power the dimmer from a DC supply matching the strings’ rating. The DMX input is opto-isolated and ESD-protected. On the bare board it is a 3-pin header with a break-out cable to standard XLR; the boxed version brings it out on two RJ-45 ports, so the line can run on Cat5 or Cat6 and continue to the next unit.
All eight outputs sit along one edge, which makes it easy to build the board into a rack drawer or a distribution box.
How Do the Two Channels per String Behave?
The odd DMX channel sets the positive polarity and the even channel sets the negative one. Equal values on both channels light the whole string evenly. Different values, or alternating steps, give odd/even chases inside a single string.
| Output | Positive polarity | Negative polarity |
|---|---|---|
| 1 | channel 1 | channel 2 |
| 2 | channel 3 | channel 4 |
| … | … | … |
| 8 | channel 15 | channel 16 |
Will the Lights Flicker on Camera?
On most cameras, no. The PWM runs at approximately 1,000 Hz, which the manual rates as flicker-free on most video cameras.
The honest caveat: the output works by switching polarity, so the LEDs are always pulsed, even at full level. For broadcast or high-speed shooting, run a test with the production camera first — the same rule we apply to pixel LED for video production.
How Does It Work on a Real Event Rig?
The largest venue install of this dimmer family we have documented is the Day&Night club in Bratislava, where more than 350 Edison CCT bulbs cover the ceiling on 40 dual-polarity dimmers. The scenes run from an Akai MIDI controller, with scene selection, brightness and animation speed on the pads and knobs, so the room reacts to the night rather than blinking on its own.
That club uses Edison bulbs, where the two polarities mean warm and cool white. Christmas strings use the same principle with odd and even sections, and the control chain — console or software, DMX, dimmers — is identical.
For large decoration projects in malls and markets, see how commercial Christmas lights run a DMX show, which covers a 100-dimmer site in Berlin.
How Do You Connect a String to the Dimmer?
- Check the string’s adapter label: 12–36 V DC, anti-parallel LEDs, and the current per string.
- Cut the string off its original controller box.
- Screw the two wires into one output terminal — a 2-pole pluggable screw terminal, 5 mm pitch.
- Power the dimmer from a DC supply matching the strings’ voltage.
- Set the start address on the DIP switch, in steps of 16.
- Daisy-chain up to 32 units per DMX line and terminate long runs.
- Patch each output as two dimmer channels and build your cues.
What Do You Check Before Load-In?
Measure the current one string actually draws rather than trusting the box it came in, confirm every unit has its own DIP address, and run the full cue stack once with the strings connected. A patch that looks right on the console still needs the polarity to land the way you expect on the tree.
Installation must be carried out by a competent person or a qualified electrician, in line with local regulations. For the wider background, see how to control LED strips over DMX.
Which Mistakes Cost You on Show Day?
Most problems at events come from preparation, not from the dimmer. These are the ones worth checking before load-in.
- Trusting the eye instead of the camera. The output always pulses; test with the camera that will record the event.
- Mixing string voltages on one dimmer. All eight outputs carry the input voltage, so strings on one unit must share a rating.
- Overloading an output. Parallel strings are fine, but the total has to stay within 0.5 A per output.
- Duplicate DIP addresses. Two units on one address move together and look like a patch error.
- Exposing the bare PCB. It is IP00 and indoor only; keep it in a dry case even at a covered outdoor event.
- Programming on site. Build and preview the cues in advance, so the rehearsal checks the look, not the wiring.
And the stock does not sit idle for eleven months: the same dimmers drive dimmable festoon lights for weddings once the trees come down.
Planning a gala, TV special or venue with classic Christmas lights on DMX? Book a free consultation and we will size the dimmers and the patch with you.
Summary
Traditional low-voltage Christmas strings use anti-parallel LEDs: half face one way, half the other, on the same two wires. A normal DMX dimmer outputs one polarity and lights only half the string. A dual-polarity H-bridge output drives both halves and dims each separately, so every string becomes two DMX channels on the console, with real fades and chases instead of fixed blink modes. The XMAS DIMMER does this on eight outputs from a 12–36 V DC supply.
