How Many Art-Net Universes Do You Need for Pixel LEDs?

Every Art-Net pixel project starts with the same question: how many universes will it need? The answer decides which controller you buy, which software license you pay for and how complicated the patch becomes. This page gives you an instant Art-Net universe calculator and explains the arithmetic behind every number it shows.

It is written for integrators, lighting programmers and event technicians who size pixel installations before ordering hardware. You will leave with a universe count, a patch plan for each output and the right license tier.

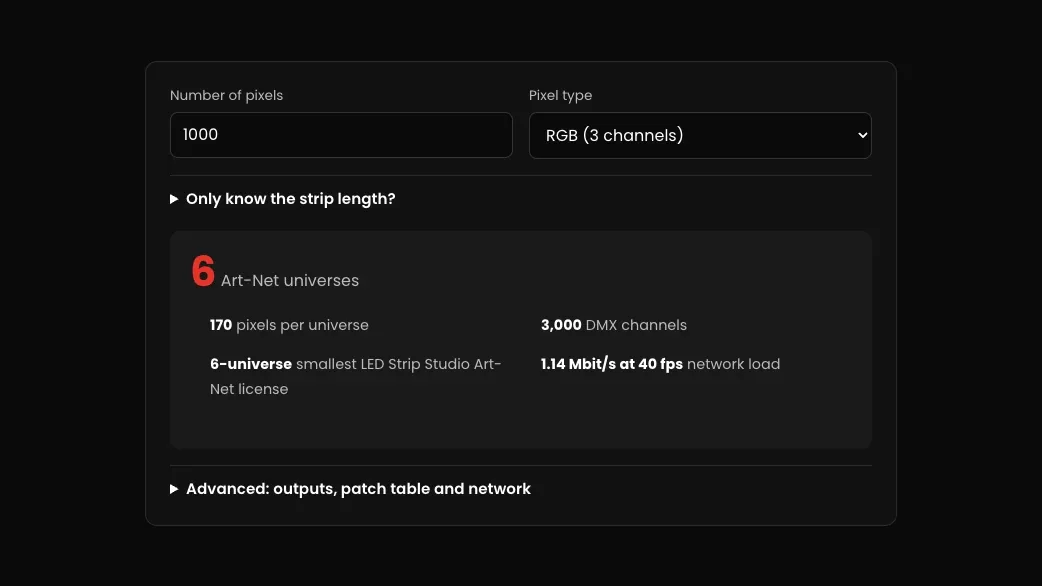

How Do You Use the Art-Net Universe Calculator?

Enter the number of pixels and choose the pixel type. The result updates as you type, with no form to submit and no security code. If you only know the strip length, open the first panel and enter metres and pixels per metre.

The advanced panel handles real installations. Set the number of controller outputs or list the pixels on each output. The calculator then builds a patch table with start universes and channels. It also estimates the network load and suggests the smallest LED Strip Studio Art-Net license that fits.

What Is an Art-Net Universe?

An Art-Net universe is one block of 512 DMX channels sent over Ethernet, where each channel carries a value from 0 to 255. Art-Net is DMX on a network: it keeps the DMX512 data format and removes the one-cable-per-universe limit. The protocol comes from Artistic Licence, and Art-Net 3 and 4 address up to 32,768 universes.

Pixels consume channels, one per colour. An RGB pixel needs three channels, an RGBW pixel four. The universe count therefore depends on the pixel type as much as on the number of pixels. The DMX basics are covered in our guide to controlling LED strips over DMX and Art-Net.

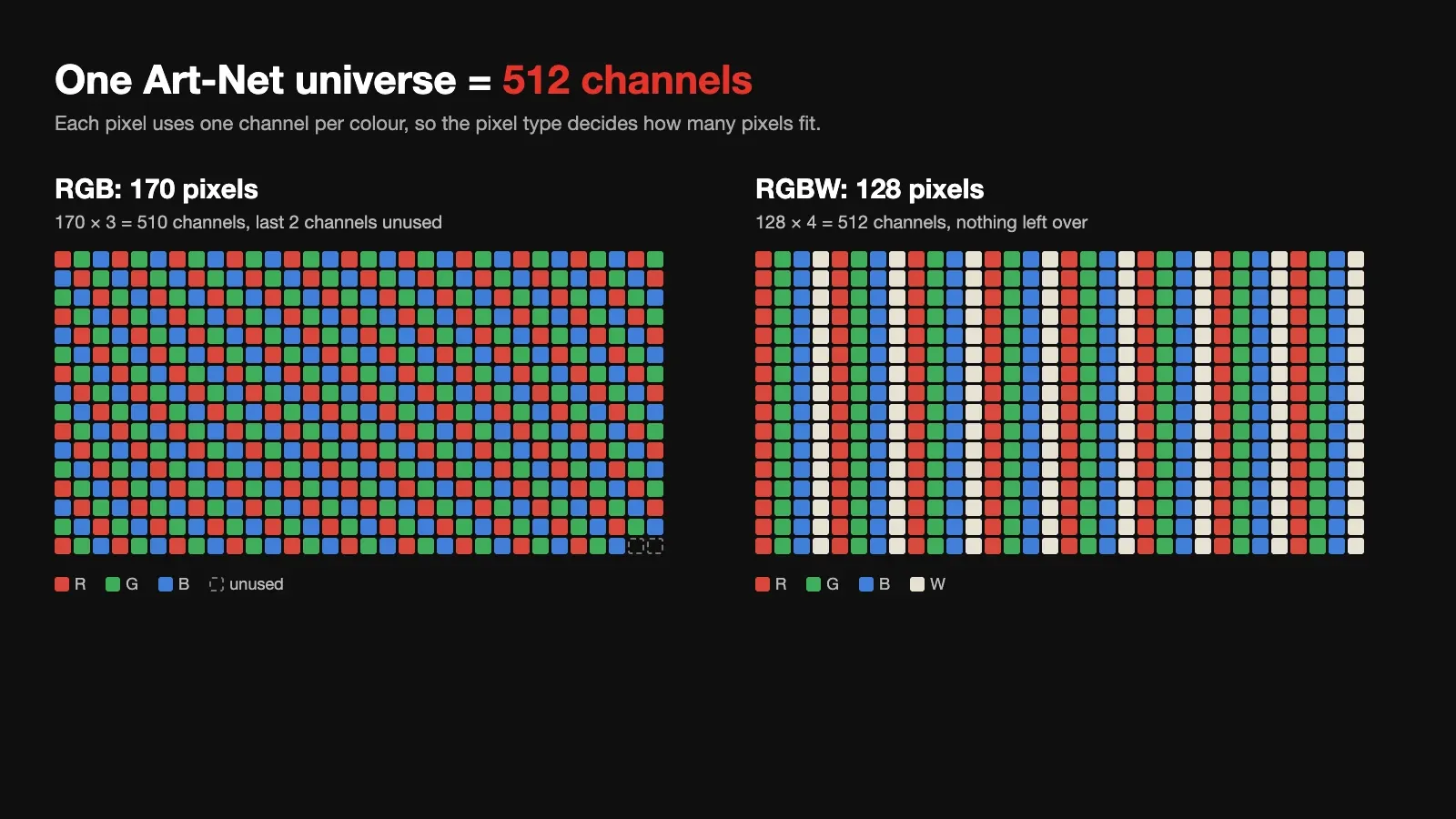

How Many Pixels Fit in One Universe?

One universe holds 170 RGB pixels or 128 RGBW pixels. With RGB the last two channels stay unused, because 512 is not divisible by three. Splitting a pixel across two universes is technically possible, but a clean patch avoids it.

Pixel type	Channels per pixel	Pixels per universe	Unused channels
RGB (8-bit)	3	170	2
RGBW (8-bit)	4	128	0
RGB 16-bit	6	85	2
RGBW 16-bit	8	64	0

16-bit pixels send two channels per colour for finer dimming, so the pixels per universe drop by half. Check the datasheet of your LED chip before you order a license.

Source: LED Strip Studio

How Do You Calculate the Number of Art-Net Universes?

The formula is short: divide the number of pixels by the pixels per universe and round up. Rounding up matters, because a universe is never licensed or patched as a fraction.

1. Count pixels, not LEDs. Many 12 V strips drive three LEDs from one pixel chip.
2. Find the channels per pixel: 3 for RGB, 4 for RGBW.
3. Divide 512 by that number and round down: 170 or 128.
4. Divide the pixel count by that result and round up.
5. If outputs start on a new universe, repeat step 4 for each output.

For 1,000 RGB pixels, 1,000 ÷ 170 = 5.88, so you need 6 universes. The same 1,000 pixels in RGBW give 1,000 ÷ 128 = 7.81, so 8 universes. That is exactly what the Art-Net universe calculator above does for every output.

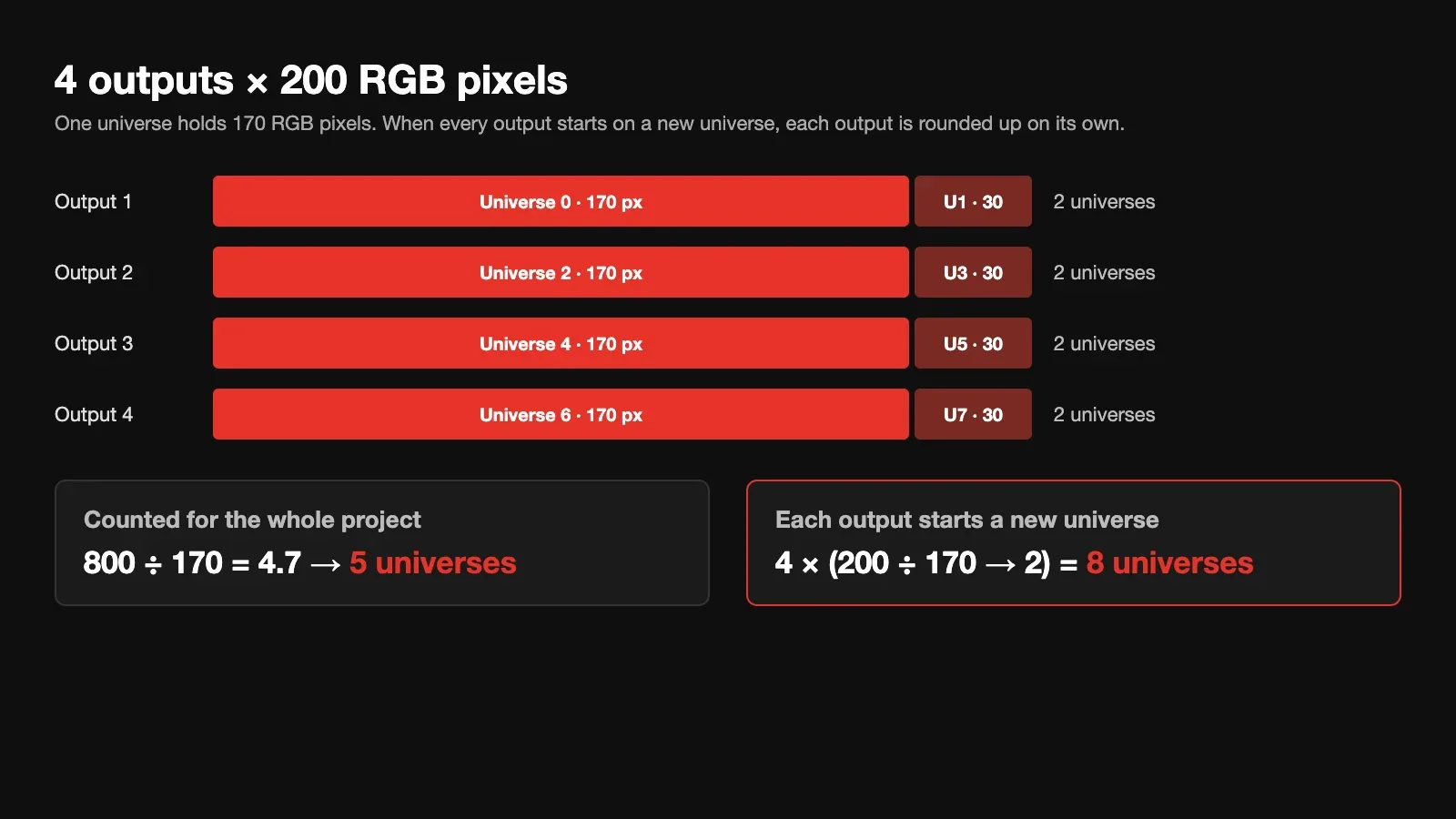

Why Count Universes per Output, Not per Project?

Most pixel controllers assign a start universe to each output. If every output starts on a new universe, you round up once per output, not once per project. That is the most common reason a license turns out too small.

Take a controller with four outputs of 200 RGB pixels each. The total of 800 pixels suggests 5 universes. Per output, however, 200 pixels need 2 universes, so the real patch uses 8.

You can run outputs contiguously and save universes, but the start addresses then fall in the middle of a universe. The calculator shows both values.

Source: LED Strip Studio

How Many Universes Can One Network Carry?

The protocol limit of 32,768 universes is never the real constraint; bandwidth is. One full ArtDmx packet carries 530 bytes of payload. With UDP, IP and Ethernet overhead it takes about 596 bytes on the wire.

At 40 frames per second, one universe therefore uses about 0.19 Mbit/s. A 100 Mbit/s link could in theory carry around 520 universes. We recommend planning for about half of that, because switches, other traffic and broadcast packets eat the headroom quickly.

Example: How Many Universes Did 38,000 Pixels Need?

The congress hall in Bad Ischl shows the difference on a real project. Two 31.7-metre pixel windows hold 38,000 pixels, driven by 20 SPI Matrix Art-Net to SPI decoders. A project-wide calculation gives 224 universes for RGB or 297 for RGBW.

One controller handles 1,900 pixels. Split evenly across four outputs, that is 475 pixels per output. One output then needs 3 universes in RGB and 4 in RGBW. The real totals rise to 240 and 320 universes, 7 % and 8 % more than the project-wide calculation.

Source: LED Strip Studio

Which Controller Tier Matches Your Universe Count?

Our LEC3 pixel controller and SPI Matrix are both sold in tiers by pixel count and Art-Net universes. Each tier adds 6 universes per 1,024 pixels.

Tier	Pixels (RGB)	Art-Net universes	LEC3	SPI Matrix
LITE	1,024	6	650 €	300 €
STANDARD	2,048	12	950 €	450 €
PRO	4,096	24	1,250 €	600 €

Six universes carry 1,020 RGB pixels or 768 RGBW pixels. For RGBW that matches the limit of 768 pixels per output exactly. For RGB it is four pixels short of 1,024, so plan a full RGB output over Art-Net at 1,020 pixels.

In the Bad Ischl example, 12 RGB universes per unit fit the STANDARD tier, while 16 RGBW universes need PRO. The LED Strip Studio software license scales separately, in steps of 1, 2, 6, 12, 24, 32, 64, 128 or 512 universes.

If no lighting console needs Art-Net, you can skip universes altogether. LED Strip Studio then drives LEC3 directly in pixels, as our DMX and Art-Net guide explains in its section on direct SPI output.

Which Mistakes Distort the Universe Count?

Almost every wrong universe count comes from one of these shortcuts.

• Dividing channels by 512. 1,024 RGB pixels are 3,072 channels, which looks like exactly 6 universes. With whole pixels per universe you need 7.
• Rounding once for the whole project. Every output that starts on a new universe is rounded up on its own.
• Using the RGB figure for RGBW strips. 1,000 RGBW pixels need 8 universes, not 6.
• Counting LEDs instead of pixels. A “60 LED/m” strip at 12 V may have only 20 pixels per metre.
• Mixing up universe 0 and 1. Art-Net numbers from 0, while some consoles show the same universe as 1.
• Buying the license with no headroom. One extra strip on site then means an upgrade just before the show.

Sizing a large pixel project and unsure about universes or licensing? Book a free consultation with our team.
