Rated IP68. Indoors and Out.

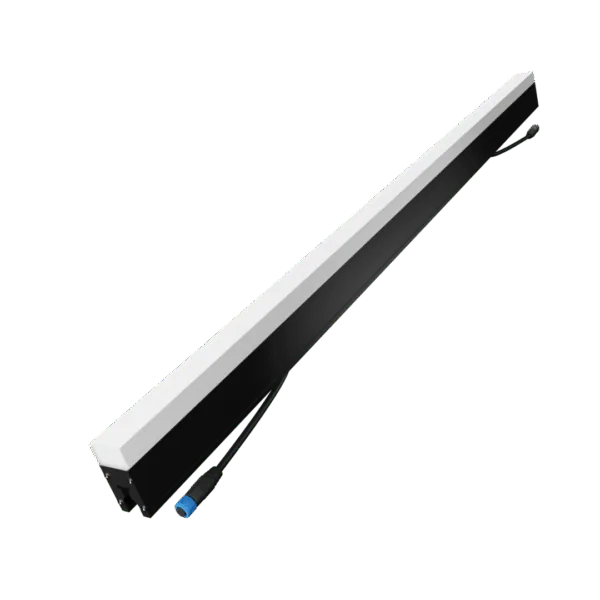

A ProfiLED bar is a sealed black anodized aluminium profile rated IP68, running from minus 20 to 65 degrees Celsius at up to 80 percent relative humidity. The same fixture goes into a club, onto a facade or out into the rain.
Sealing
What IP68 covers
The first digit of an IP rating covers solids and the second covers water. A 6 means the body is fully sealed against dust. An 8 means it withstands continuous immersion, which is the highest rating in normal use.
For a ProfiLED bar that means rain, spray, dust and fog machines are not a design problem. The connectors are 4-pin M12 push-lock, so the joints between bars are part of the sealed system rather than a weak point.
- Fully sealed against dust
- Rated for continuous immersion in water
- 4-pin M12 push-lock connectors between bars
- Black anodized aluminium profile
Environment
Temperature, humidity and handling
The bar operates from minus 20 to 65 degrees Celsius and stores from minus 30 to 85, at 5 to 80 percent relative humidity without condensation. That covers a winter facade and a hot summer stage on the same specification sheet.
Each bar weighs one kilogram, so a ten bar system is ten kilograms of fixtures plus the controller. That is light enough to rig by hand and to move between jobs in a single case.
- Operating range minus 20 to 65 degrees Celsius
- Storage range minus 30 to 85 degrees Celsius
- 5 to 80 percent relative humidity, non-condensing
- One kilogram per bar
FAQ
Waterproof IP68 Build questions
Yes. The bars are rated IP68, which covers full protection from dust and continuous immersion in water.
It operates from minus 20 to 65 degrees Celsius and can be stored from minus 30 to 85 degrees Celsius.
One kilogram per one meter bar, so a ten bar system weighs about ten kilograms plus the controller.
